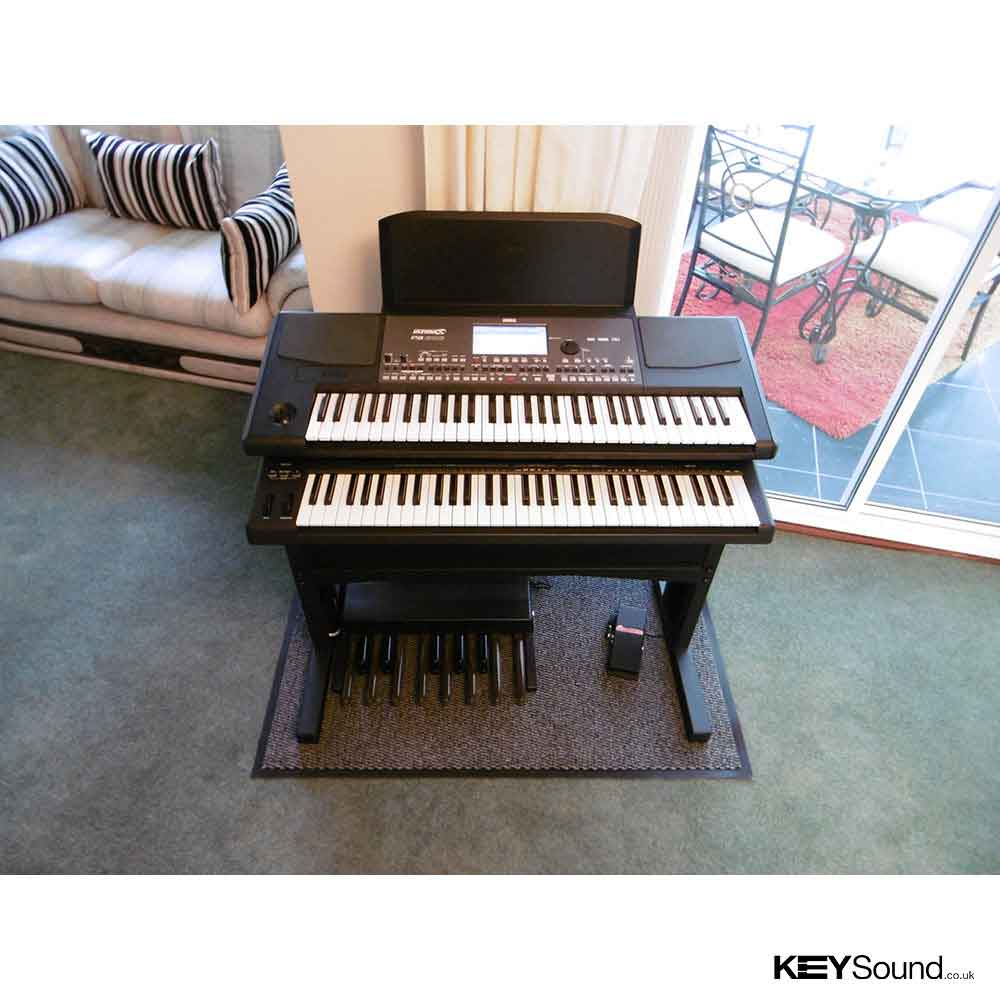

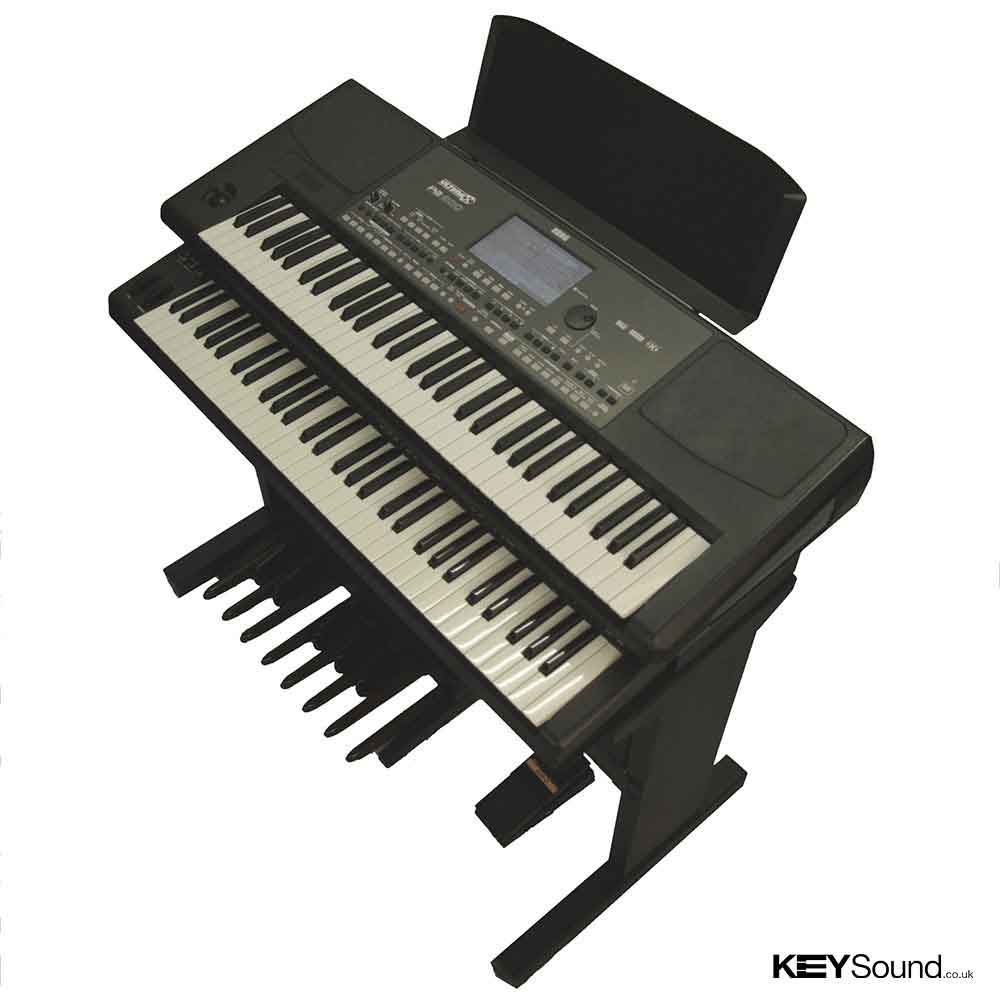

2 x 61 note keyboards & 13 note pedal board.
The options are now in your hands as you choose how much of the performance you want to play live. Let the Ultimax PA600 fill in the bass line for you or create it yourself with the included bass pedal board.
Get instant changes with the Single Touch Settings. There are a total of 950 top quality sounds to choose from, and a selection of meticulously prepared sound combinations made especially for the Ultimax PA600.
With double the choice of style backings from that of the Korg PA600, this versatile Ultimax model offers accompaniment styles through the decades from all over the world. You can even add more with free downloads covering the very latest releases.
Simply lift off the top keyboard and you have a lightweight portable single keyboard, powered by Ultimax software, that you can take out with you.
It is easy to record on the Ultimax PA600 and you can even correct mistakes that you may have made with the Record Edit Menu. Can't record everything in one go? Then you can build your recording instrument by instrument with the on-board 16-track sequencer.
Should you decide that you want to upgrade to the next model in the Ultimax range, you only need to change the top keyboard. Simply lift it off and replace it with the new one, it really is that easy.

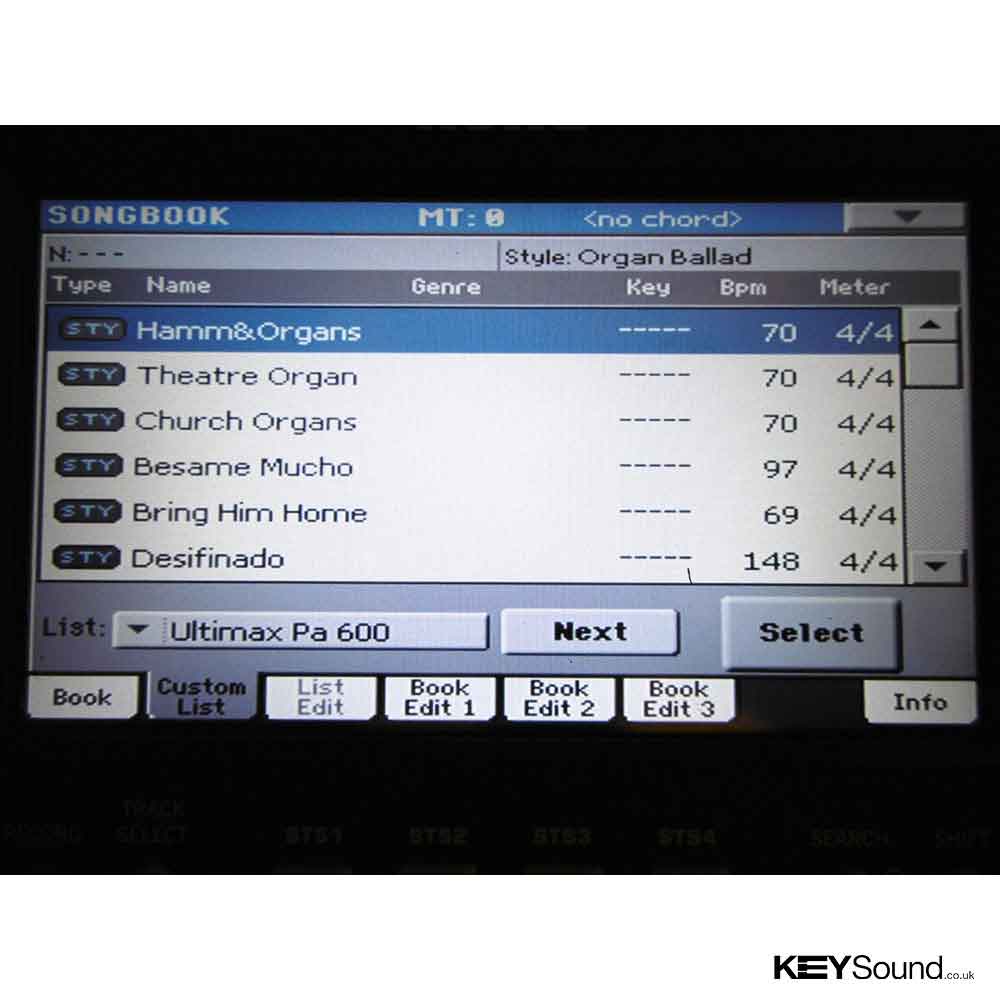

With the dedicated Songbook App, the Ultimax is even easier to use. More details from Keysound.
2 x 61 keys
Pedals: 13 Note pedal board, Expression Pedal
Software Package: Ultimax PA600 software including unique registrations & style package
Stand: Ultimax custom built stand
Seat: Padded bench with opening lid for music storage
Leads: Ultimax lead connection package including Midi merge box
Assistance: The Ultimax PA600 comes with Keysound’s lifetime product support. Yes, while you own this instrument, our help is completely free.
Sounds Factory More than 950 (including Stereo Piano and GM 2 Sounds) 64 Drum Kits User 256 Sounds 128 Drum Kits Tone Generator 128 Oscillators (max polyphony 128 voices)- Filters with Resonance PCM User Memory 96 MB
Effects & EQ 4 Stereo Master FX / 125 Effects types Three band EQ for each track –Articulations Limiter - Master 4 band Parametric EQ Others Dynamic Nuance Control (DNC) Technology Full editing of Sounds and Drum Kits Realtime sound control using assignable Switches Controllers Joystick – 2 Assignable Switches
Styles Factory More than 700 preloaded Styles, freely reconfigurable User Up to 1,200 available Style locations including the Favorite/User banks Structure Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style Style controls 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Autofill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment Mute, Snare & Kick Designation, STS Mode – Chord Sequencer Others Guitar Mode 2, Parallel and Fixed NTT, Style Record with Step Record, Track and Event Edit functions
Performance/STS 320 Realtime Performance locations STS Memorize Realtime tracks Up to 4 x Styles, up to 4 x SongBook entries My Setting special Performance
Voice Parts: Four Keyboard parts (Upper 1, 2, 3, Lower) Pads 4 Pad tracks + Stop button – Pad Record
Song Play Single Player with Select, Start/Stop, Home, Rewind and Fast Forward controls Jukebox function - Compatible with SMF (formats 0 and 1) and MP3 with Vocal Remover - Lyrics (compatible with CDG), Score, Marker
Display 7” 800 x 480 TFT Graphical Color TouchView
Sequencer Quick Record (Backing Sequence), Multitrack and Step Record functions Full featured sequencer - 16 tracks - Up to 100.000 events - SMF format
Song Book Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes - User-definable custom lists - Filtering options
Search Style, Song, Performance, SongBook, Sound and Lyrics TXT
Compatibility for Sound Data “i-Series": Styles only “Pa series”: Style, Performance, Sound, PCM, Song, SongBook and Pad
General Controls Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Fade In/Out, Tempo Lock, Style Change - Quarter Tone Arabic Scale, User Scale memorized inside Performance/STS, Search, Lyrics, Score, Maker, Dial, Tempo, Metronome, Split Connections Control Inputs Damper Pedal, Assignable Pedal/Footswitch
Line Out Unbalanced Jack Left/Mono, Right, Headphones
Line In 2 Unbalanced Line In Jacks
MIDI In, Out Midi connectors - USB to Midi using the USB Device port Individual track assignment - 8 user definable MIDI Preset
USB Type A (TO DEVICE) x 1:2.0 Hi Speed Type B (TO HOST) x 1: 2.0 Hi Speed
Speaker System Amplification 15W x 2 Speakers 100 mm x 2 Double Cone Speakers in Bass Reflex Box
Power Supply AC 100-240 V Power Consumption 20 Watt
Dimensions (W x D x H) 1,030 x 560 x 870 mm without music rest Weight 26 kg
