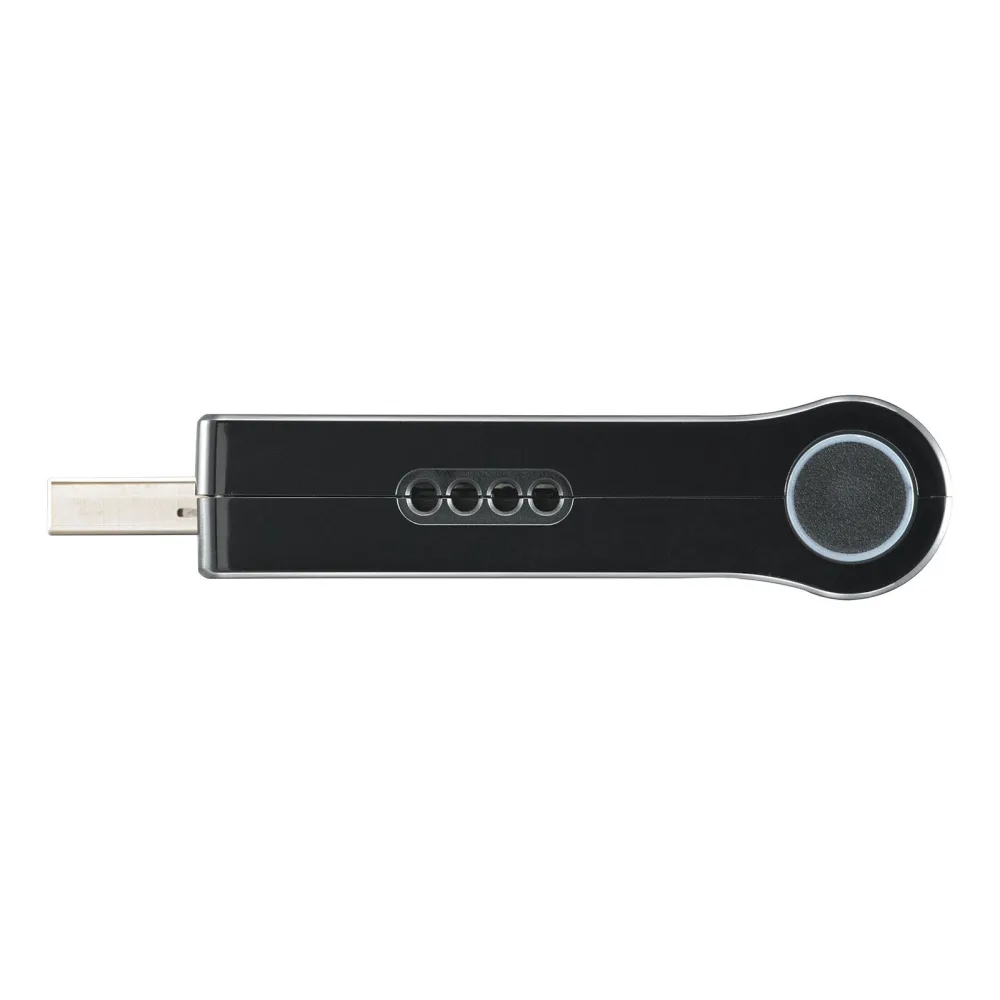

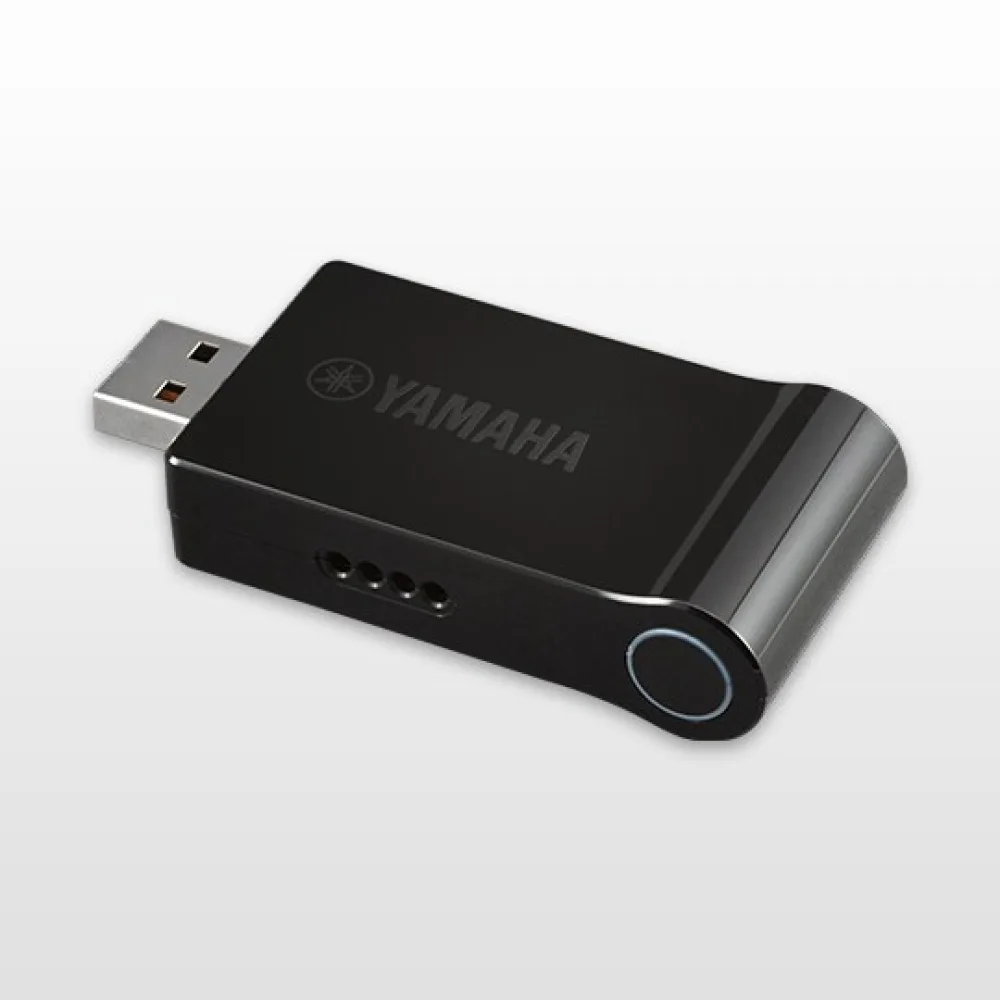

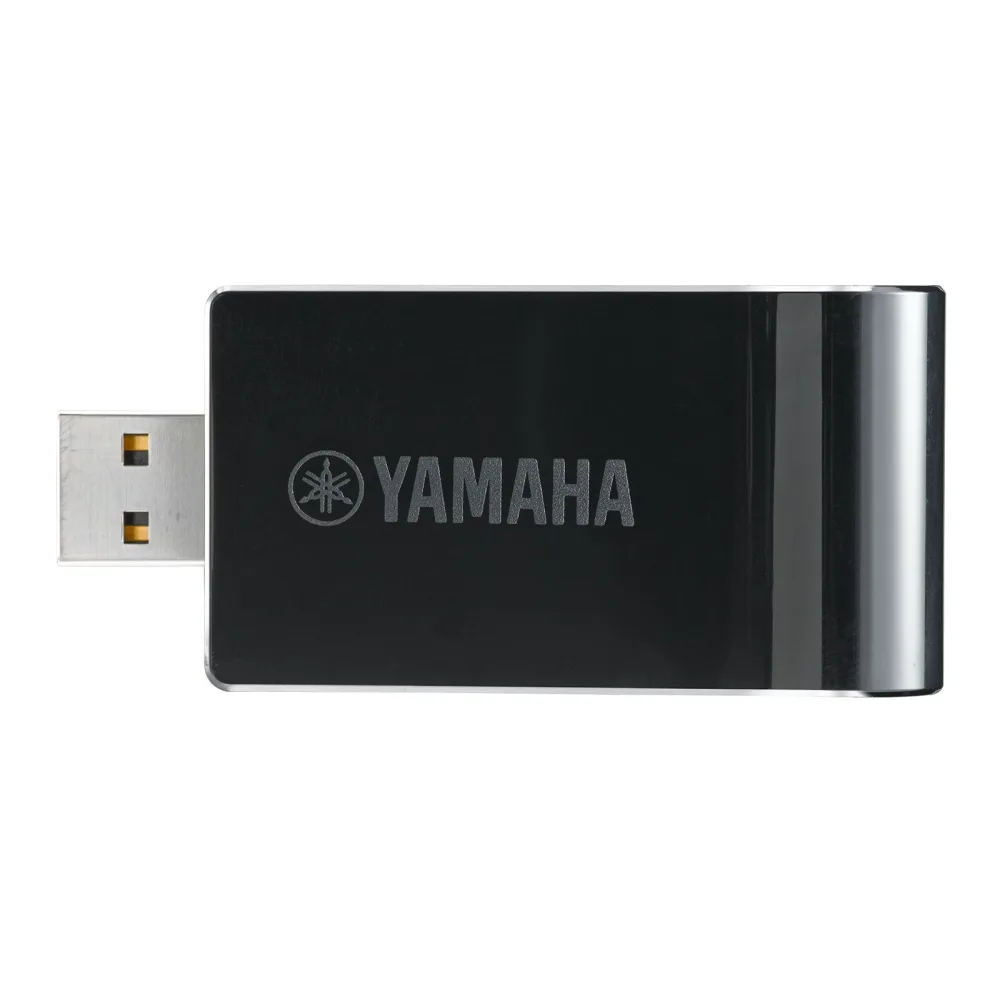

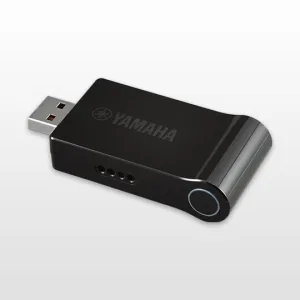

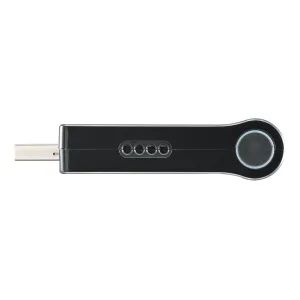

Yamaha UD-WL01 USB Wireless LAN Adaptor
The Yamaha UD-WL01 is a compact USB wireless LAN adaptor designed to add wireless network connectivity to compatible Yamaha digital pianos, keyboards and other musical instruments.
Once connected to the USB TO DEVICE port of a compatible Yamaha instrument, the UD-WL01 can provide wireless communication with supported devices, applications and network services. This makes it possible to access compatible Yamaha functions without requiring a direct wired connection between your instrument and mobile device.
The adaptor supports IEEE 802.11b/g/n wireless networking on the 2.4 GHz frequency band. It also supports WPS, allowing quick connection to compatible wireless routers by pressing the WPS button on the adaptor and router.
Measuring just 69 x 15 x 31 mm, the UD-WL01 is small enough to remain connected without adding unnecessary bulk to your instrument. Compatibility varies between Yamaha models, so we recommend checking that your particular instrument supports the UD-WL01 before purchasing.
| Product Type | USB wireless LAN adaptor |
| Connection | USB |
| Wireless Standards | IEEE 802.11b/g/n |
| Wireless Frequency | 2.4 GHz |
| Frequency Range | 2412 - 2472 MHz, channels 1 - 13 for applicable regions |
| 5 GHz Wi-Fi | Not supported |
| WPS Support | Yes |
| Security | WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (AES), WPA/WPA2 mixed PSK |
| Width | 69 mm including connector |
| Height | 15 mm |
| Depth | 31 mm |
| Colour | Black |
| Suitable For | Compatible Yamaha digital pianos, keyboards and musical instruments |
Q: What does the Yamaha UD-WL01 do?
A: The Yamaha UD-WL01 is a USB wireless LAN adaptor that adds wireless network connectivity to compatible Yamaha digital pianos, keyboards and other musical instruments.
Q: How does the Yamaha UD-WL01 connect to my instrument?
A: The UD-WL01 plugs into the USB TO DEVICE connection on a compatible Yamaha instrument. Once connected, it can provide wireless communication with supported devices, applications and network services.
Q: Does the Yamaha UD-WL01 support 5 GHz Wi-Fi?
A: No. The Yamaha UD-WL01 supports IEEE 802.11b/g/n wireless networking on the 2.4 GHz frequency band and does not support 5 GHz Wi-Fi.
Q: Does the Yamaha UD-WL01 support WPS?
A: Yes. The UD-WL01 supports Wi-Fi Protected Setup, allowing quick connection to a compatible wireless router using the WPS buttons on the adaptor and router.
Q: Will the Yamaha UD-WL01 work with every Yamaha digital piano or keyboard?
A: No. Compatibility depends on the individual Yamaha instrument. We recommend checking that your specific piano or keyboard supports the UD-WL01 before purchasing.
Q: What wireless security standards does the Yamaha UD-WL01 support?
A: The UD-WL01 supports WEP, WPA-PSK with TKIP or AES, WPA2-PSK with AES and WPA/WPA2 mixed PSK security.
Q: What are the dimensions of the Yamaha UD-WL01?
A: The Yamaha UD-WL01 measures approximately 69 mm wide including the connector, 15 mm high and 31 mm deep.
Q: Can the Yamaha UD-WL01 be used with Yamaha apps?
A: Yes, when used with a compatible Yamaha instrument and supported application. App and instrument compatibility varies, so the requirements for your particular Yamaha model should be checked before use.
