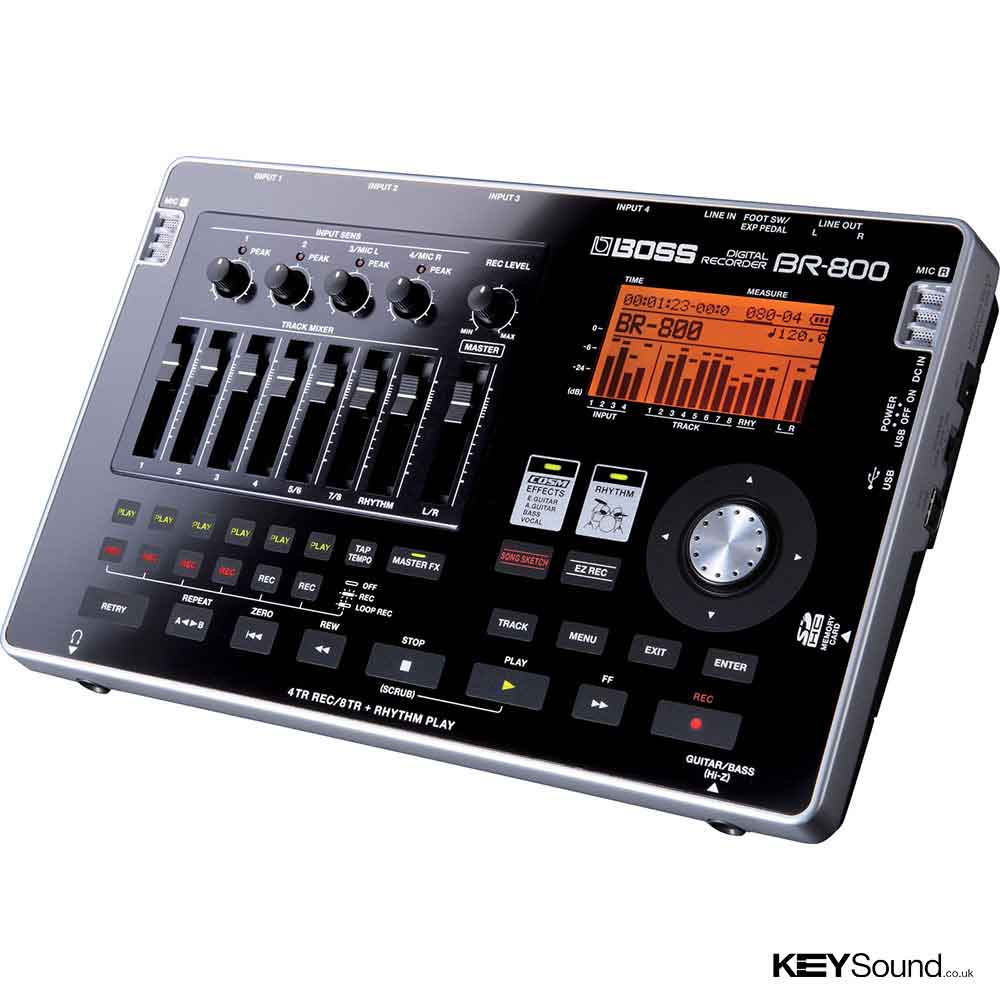

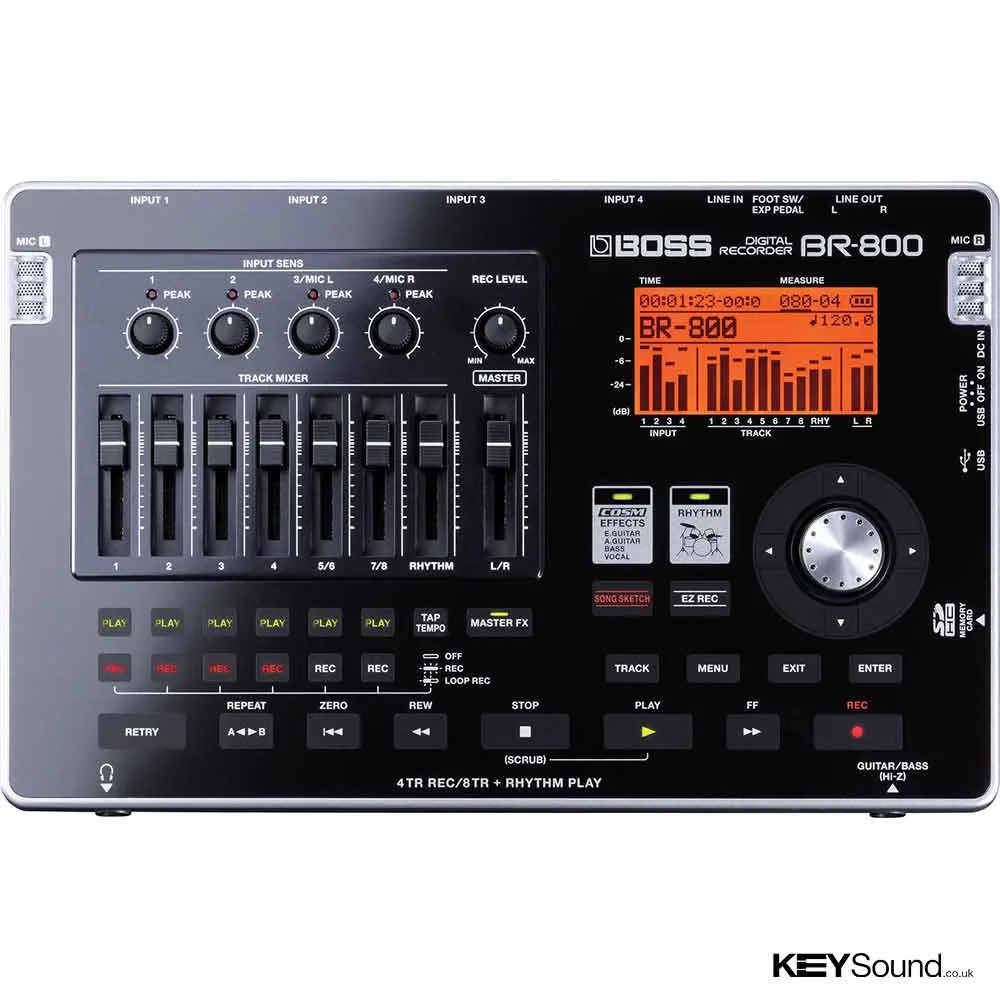

Boss BR-800: Digital Recorder
The Complete, Portable Music-Production Solution
BOSS continues its top-selling tradition of portable, affordable multi-track recorders with the new BR-800, a battery powered studio to go. The sleek new design is made possible by touch-sensor switches and SD-card media recorder. Up to four tracks can be recorded simultaneously with eight tracks of simultaneous playback, plus an additional stereo track dedicated to the built-in rhythm generator. The BR-800’s powerful onboard effects processor includes GT-10/10B effects, VE-20 vocal effects and harmonies, and COSM-based acoustic guitar body modelling. The EZ Recording feature interactively guides you through the recording process. A stereo microphone is also built into the BR-800 for instant “Song Sketch” recording. No matter where you are, you’ll never take risks getting your ideas down with the BR-800.
•4-track simultaneous recording, 8-track simultaneous playback plus dedicated stereo rhythm track playback
•EZ Recording function interactively guides you through the recording process
•Powerful guitar, bass, and vocal effects derived from BOSS’s flagship processors
•Song Sketch recording for quick stereo capture in WAV format
•Built-in advanced drum machine with editor software
•Functions as a USB audio interface and DAW controller
•Cakewalk SONAR 8.5 LE recording software with full audio loops and backing tracks included
•Built-in stereo condenser microphone for instant recording
•Sleek new interface with sensor touch
•1GB SD included (supports up to 32GB SDHC card)
•Runs on six AA batteries/USB bus power/AC adaptor (included)
EZ Recording
Whether you’re creating intricate, multi-layered songs or point and capture field recordings, the BR-800 makes the recording process fast and easy. Beginners will love the new EZ Recording mode that interactively guides you through the recording process. Other helpful features include the convenient Retry function, which recues automatically to fix mistakes and Song Sketch recording for instant, one-touch capture. There’s also a built-in stereo condenser microphone plus a DR-880-quality rhythm generator for adding drum and percussion tracks to your songs.
Pro Effects
Enhance your recordings with the powerful BOSS effects onboard the BR-800. Many of the effects are derived from BOSS’s flagship processors, including vocal effects from the VE-20; COSM guitar/bass amps and effects from the GT-10 series and modelled acoustic guitar body effects from the Martin AP-1 preamp, which imparts pro-quality miced-up sound and rich body tone to line-recorded acoustic guitar. You’ll be amazed at how much processing power is built into this little device, and how great the effects sound.
Mobility
You can power the BR-800 from the included AC adaptor, or, for ultimate mobility, it can be powered from six AA batteries. So you can record anywhere! Stereo microphones are also built into the BR-800 for instant “Song Sketch” recordings, great for capturing song ideas (acoustic guitar and vocals, for example) from any location.
USB Enhanced
The BR-800’s USB compatibility enables a variety of functionality with your computer. Connected to a PC, the BR-800 will function as a USB audio interface for recordings that utilise the internal effects. The BR-800 can also function as a control surface for DAW software.
Hear, Try and Compare the Boss BR800 Digital Recorder in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Boss range including the BR800 Digital Recorder and compare it with
all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Number of Tracks
Track: 8
Simultaneously recording track: 4
V-Track: 64 (8 V-Tracks per each Track)
Sample Rate
44.1 kHz
Frequency Response
20 Hz to 20 kHz (+1/-3 dB)
AD Conversion
24 bit
24-bit + AF method (GUITAR/BASS input)
*AF (Adaptive Focus) method is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.
DA Conversion
24bit
Compatible Card Capacity
SD Card: 1 GB to 2 GB
SDHC Card: 4 GB to 32 GB
Data Type
HiFi (MT2) Roland/BOSS original format
16 bit linear stereo WAV format(*)
*SONG SKETCH only
Recording Time
(for multi-track recording)
*Conversion in one track
1 GB: 8 hours 40 minutes
2 GB: 17 hours
4 GB: 34 hours
8 GB: 68 hours
16 GB: 136 hours
32 GB: 272 hours
* The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
* The above number is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of data, the length of the resulting song will be approximately 1/8 of the above.
Recording Time
(for SONG SKETCH)
*Stereo recording
1 GB: 90 minutes
2 GB: 3 hours
4 GB: 6 hours
8 GB: 12 hours
16 GB: 24 hours
32 GB: 48 hours
Nominal Input Level
GUITAR/BASS jack: -10 dBu
INPUT 1 to 4 jacks: -50 to -20 dBu (XLR type), -26 to +4 dBu (1/4" TRS phone type)
LINE IN jack: -10 dBu
Input Impedance
GUITAR/BASS jack: 1 M ohm
INPUT 1 to 4 jacks: 3k ohms (XLR type), 47 k ohms (1/4" TRS phone type)
LINE IN jack: 10 k ohms
Nominal Output Level
LINE OUT jacks: -10 dBu
Output Impedance
LINE OUT jacks: 1 k ohm
Recommended Load Impedance
LINE OUT jacks: 20 k ohms or greater
PHONES jack: 32 to 100 ohms
Residual Noise Level
LINE OUT jacks:-85 dBu or less (IHF-A Typ.)
Display
128 x 64 dots (Backlit LCD)
Connectors

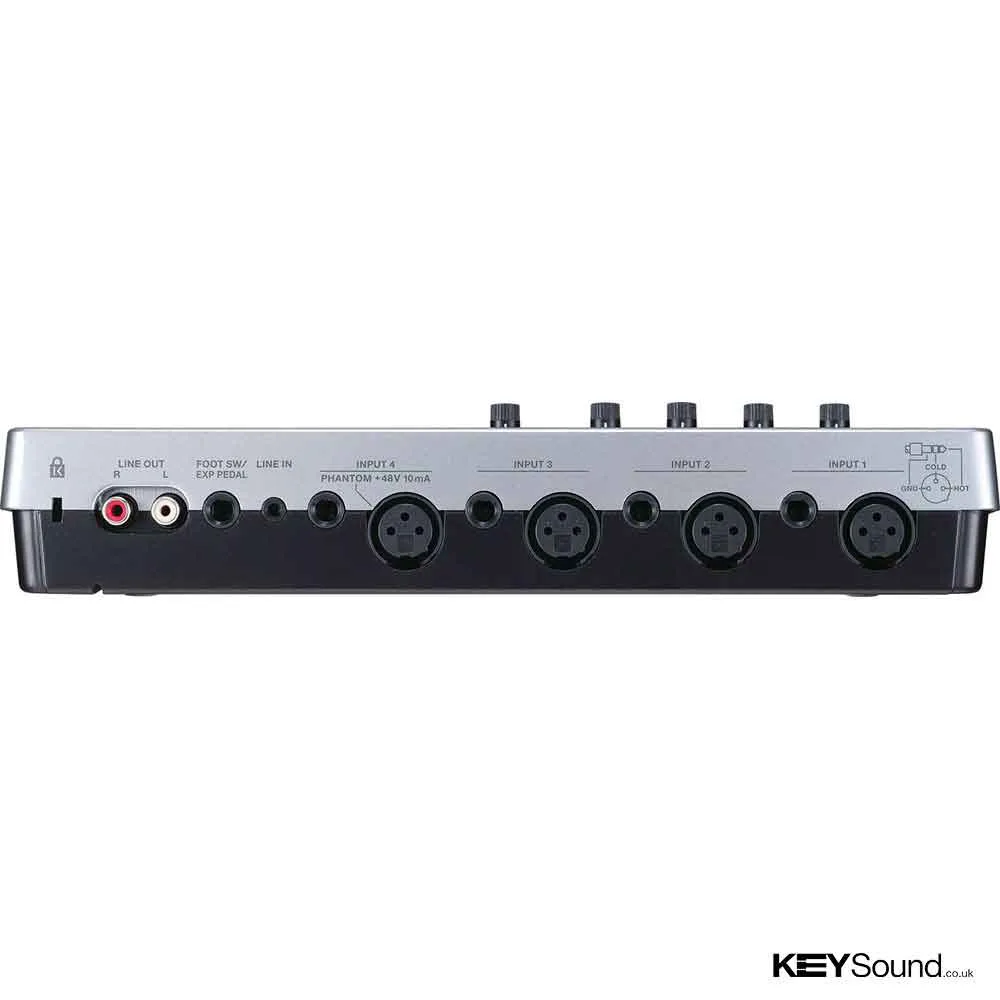

GUITAR/BASS jack (1/4" phone type), INPUT 1--4 jacks (XLR type / 1/4" TRS phone type), LINE IN jack (Stereo miniature phone type), FOOT SW/EXP PEDAL (1/4" TRS phone type), LINE OUT jacks (RCA phono type), PHONES jack (Stereo 1/4" phone type), USB connector, DC IN jack
USB Function
Audio Input/Output, MIDI Input/Output, File Transfer, BUS Power operation
Power Supply
DC 9V: AC Adaptor
Size AA Dry battery x 6 (alkaline batteries recommended)
USB Bus Power
Current Draw
280 mA (DC IN)
480 mA (USB Bus Power)
Battery Life for Continuous Use
Approximately 5.5 hours
(Alkaline dry batteries, with continuous playback of 8 tracks, phantom power off)
* May vary according to usage conditions, phantom power used, batteries used, and type of SD card used.
Accessories
SD Card (1 GB), AC Adaptor, USB Cable, BR-800 DVD-ROM, Owner's Manual
Options
Footswitch: FS-5U, Pedal Switch: DP-2 (Roland), Expression Pedal: EV-5 (Roland), FV-500L/FV-500H, Soft Case: BA-CB1
Size and Weight
Width
289 mm
11-7/16 inches
Depth
184 mm
7-1/4 inches
Height
58 mm
2-5/16 inches
Weight
890 g
2 lbs.
* 0 dBu = 0.775 Vrms* USB Driver for BR-800 requires Windows XP, Windows Vista, Windows 7, Mac OS X 10.4 or later. For more detail, please refer to the documents attached with the drivers. In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
