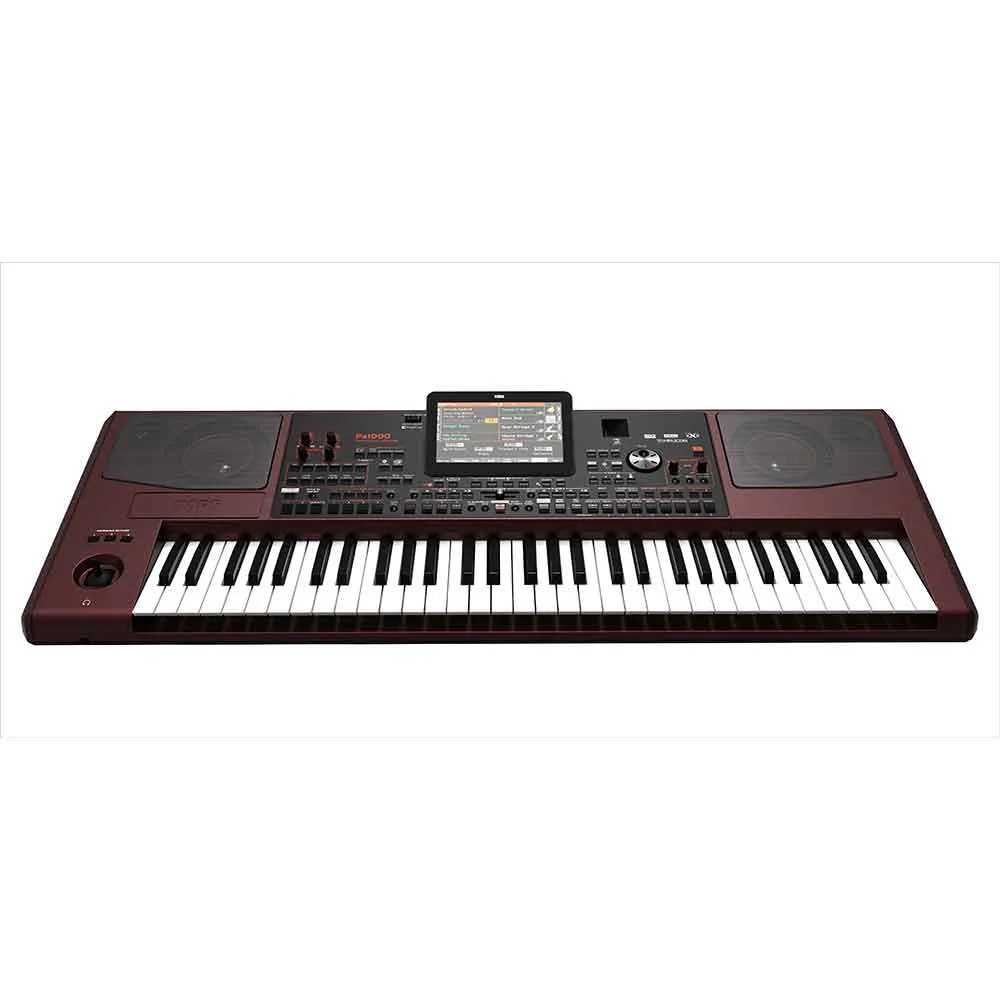

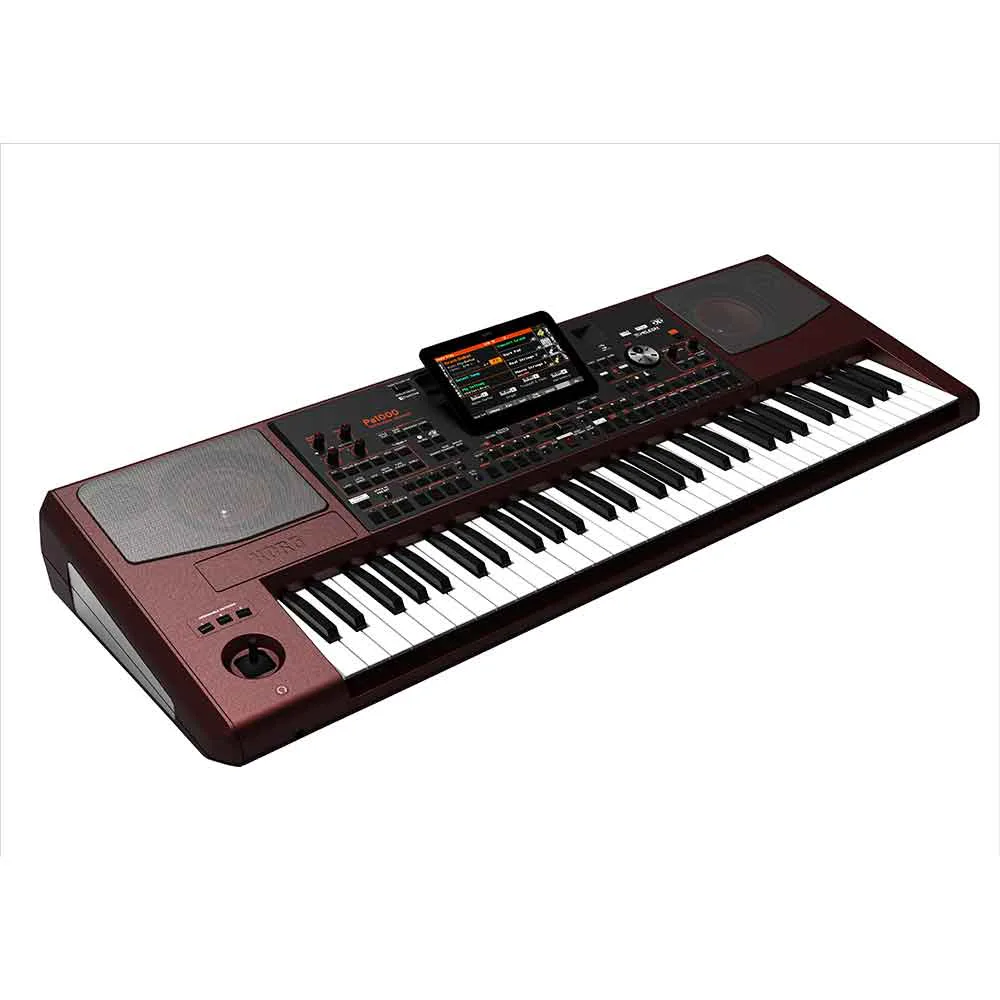

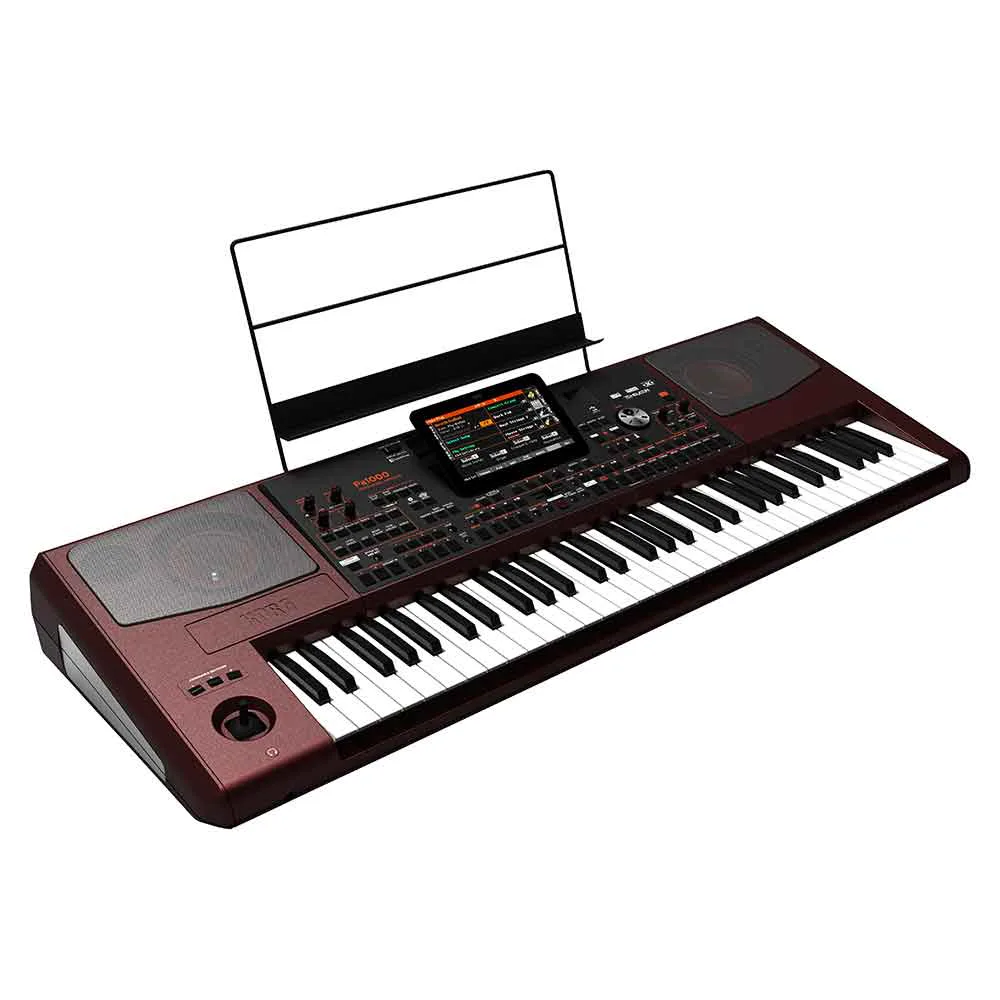

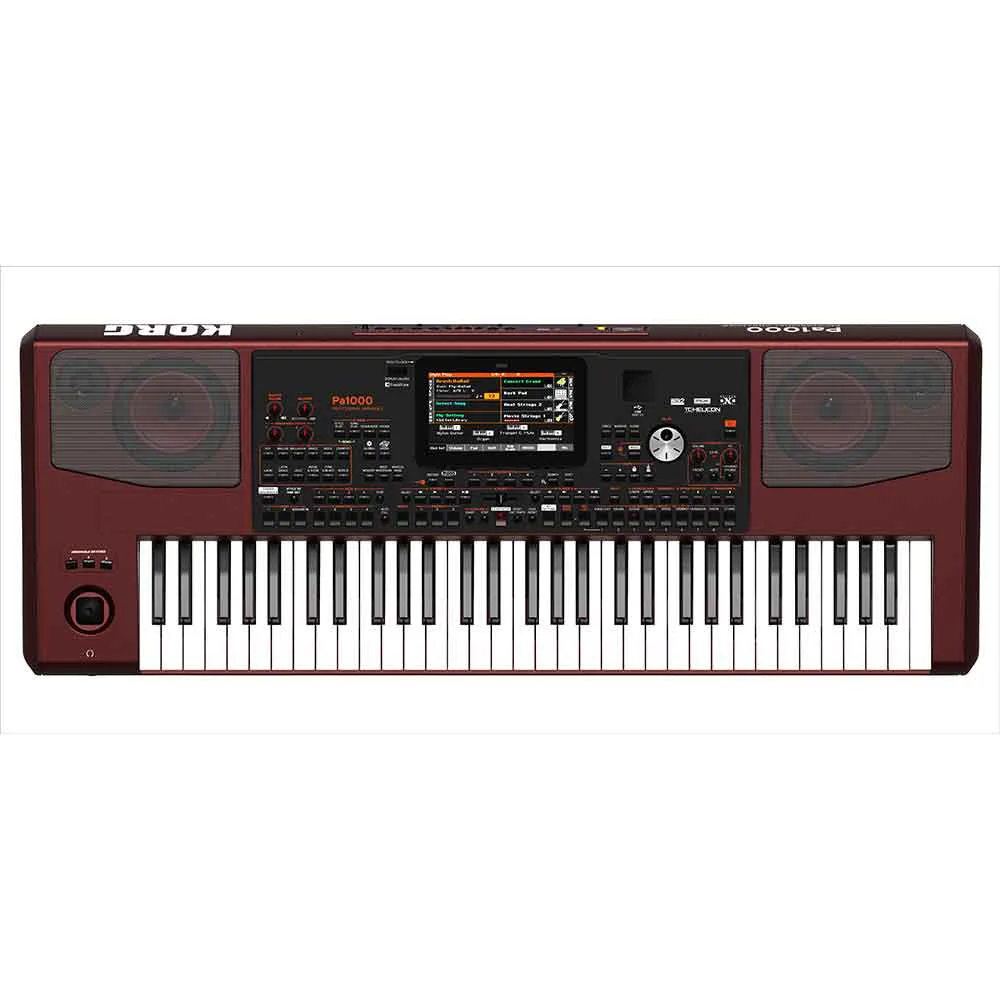

Korg PA1000 Professional Arranger

Performance that takes you places

KORG debuts the newest High Performance Arranger in the acclaimed Pa-Series of Professional Arrangers, the Pa1000. The Pa1000 has plenty of new sounds (featuring Defined Nuance Control for enhanced realism) which keep performances fresh and exciting, as well as an enormous expanded range of styles covering music genres from all over the world. Combine this with powerful performance functionality, an intuitive user interface and rich, sculpted sound and you have an Arranger for the most discerning and demanding player.

The Pa1000 sound engine uses four times the PCM memory of the best-selling Pa900 and extends the amount of User PCM memory to 600MB using compression. The number of User Style locations has also expanded to a maximum of 1,152 which will cover almost every style imaginable. The improved built-in speaker system produces a strong, full-bodied sound that’s enhanced by standard features such as the TC Helicon Vocal Harmonizer, a Dual MP3 player & recorder, and the Dual Crossfade Sequencer. Video output is standardized, so your audience can sing along to the onscreen lyrics. The Pa1000 packs all this in a high‐quality case with aluminium inserts in the side-panels of an elegant chassis to provide a prestigious look on any stage!

Totally new is the addition of KAOSS FX, which give you creative control on your performance. From subtle morphing between Variations and Drum Kit types, fine mixing between accompaniment Sounds, live reshaping of ongoing rhythms, to the most radical note-crunching effects used by countless DJs, tape delay and arpeggios, you can add ‘liquid mixing’ to any Style or MIDI Song with the aid of easy-to-use computer-assisted composition features. Push the boundaries of your musicality!

With more power than ever before and numerous long-awaited new features, the Pa1000 sets a new standard for arranger workstations. A massive leap forward from the legendary and best selling Pa900, KORG has raised the bar of excellence by offering newer, even more realistic sounds and powerful new features, delivered in a slim and professional looking design, at an even more affordable price.

The New Pa1000

KORG is responsible for the most successful and respected arranger keyboards in the world. Used by countless professional musicians in every country around the world, KORG arrangers have thrilled audiences and delighted players everywhere with the magic combination of unbeatable sound quality and features. KORG Technology blends this great KORG history with powerful new technology and ideas from musicians around the world to deliver a new standard in arrangers. The result is a musical powerhouse that packages technological magic into a cool and user friendly design: the KORG Pa1000. /p>

Feel the keyboard

The 61-key keyboard offers a semi-weighted action, feels just right, features naturally responsive key-on/key-off velocity sensitivity and aftertouch, and is designed for musicians of all levels.

Slim, powerful and easy to use

The Pa1000 has been designed with the concept of combining a slim profile with a professional motif. The 2x33 Watt amplifiers drive the 4 loudspeakers in a bass-reflex enclosure to generate a rich, full-bodied listening experience. The main panel has been optimized to ensure that all controls are ergonomically positioned and intuitively located to make every performance feel smooth and natural. Big, bright, and bold, the new capacitive TouchView display hosts a redesigned graphical interface that is easier than ever to read, even under the most demanding lighting environments.

Sound quality at its best

The Pa1000 relies on KORG’s advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine, and comes complete with over 1,750 ready-to-play sounds. This realistic collection offers a vast gathering of classic and contemporary keyboards, band and orchestral instruments, plus electronic and acoustic instruments—from techno to folk. Included are two new multi-layer stereo grand piano (with damper and body resonance), plus electric pianos from the acclaimed KORG SV-1 Stage Piano.
The digital drawbar organ includes key on/off noises, leakage, and Rotary Speaker emulation. In addition, the Pa1000 has been equipped with new wind instruments, strings, basses—even acoustic and electric guitars. Sounds have been painstakingly captured using state-of-the-art methods that allow the finest of details to be accurately reproduced.

Up to 600 MB (compressed PCM User memory) are available, so custom sounds can be added easily. The General MIDI (GM) sound bank has been improved for better compatibility with GM files. The Pa1000 can also load/import KORG, WAV, AIFF, SoundFont™ formats and export in WAV or AIFF. Sounds can be fully edited, and can now use up to 24 oscillators for each note!

Do it with Style

The Pa1000 delivers over 430 Styles, straight out of the box. Each one is a fully-realized musical environment dedicated to creating a particular musical style. With so many to choose from, the Pa1000 can provide instant access to a vast and robust range of musical genres. Each Style features 4 Fill Ins + Break patterns, one for each variation. Using the new Auto Fill function they can be automatically recalled as you move between the four variations.

The Pa1000 has 1,152 user locations for you to save your new Styles and settings. In addition, each Style can be enhanced by using the four Pads. Each Pad can add a one-time or repeating riff, a percussion part, an accent sound, or even a sound effect.

The latest Styles – today!

Thanks to an all new built in Standard MIDI File to Style converter you can quickly and easily have on board styles of the latest songs! Just obtain a new Standard MIDI File, load it into the Pa1000 and the inbuilt converter will easily and quickly turn it into a full KORG style while also creating a Chord Sequence from the Song’s chords.

Studio-Quality Effects

The Pa1000 includes the best of the KORG library. 2 Insert and 2 Master effects can be used for the accompaniment tracks, while 1 Insert and 2 Master effects can be used for the real-time keyboard tracks. 148 effect types are available, including reverbs, delays, vintage stomp box simulations, amp and cabinet simulators and more.

TC Helicon® Voice Processor

KORG’s long term cooperation with the world leader in vocal harmonies, TC-Helicon®, continues in the Pa1000. With new features and algorithms, the TC-Helicon Voice Processor ensures your vocals have the highest possible sound quality. Up to 3 realistic voices are available and can be controlled by the keyboard, or by MIDI events. Other 5 effect blocks are available, including EQ, Compressor, Gate, and two FX.

Refine your guitar’s pure sound

Guitar FXs let you add pedal and studio effects to a guitar connected to the dedicated Guitar input on the back of the instrument. We selected some of the best guitar effects from the KORG collection, to add the sound of all-tube amplifiers, realistic distortion, chorus or delay pedals, and the highest quality studio reverbs.

Player/Sequencer

The famous KORG XDS Crossfade Dual Sequencer Player supports the MP3+G (also known as MP3+Graphics) format for MP3 files in addition to the most popular lyrics formats. This new feature allows backing sequences to play with enriched lyrics and graphics which can be displayed simultaneously on the on-board TFT display and on an external monitor. There is also a Marker Function, allowing direct jumps to a given position in the song.

And because the Pa1000 is very clever, it can record your entire performance! You can run a song, play the keyboard, sing along and everything will be recorded in MP3 format and stored on an external USB device or in the internal memory.

The SongBook

Particularly useful for live use, the SongBook is a fully programmable and easily searchable Music Database. Each entry contains all the settings required to play a particular song. The SongBook can use styles, MIDI files or MP3s and immediately recall settings such as song title, genre, artist, tempo, volumes, sounds, muted tracks, FX settings, easy edit, 4 Keyboard Sets, TC-Helicon® presets, master transpose and more. The SongBook includes also a renewed Set List function, with a convenient panel-button association for fast recall, to make life easier during live gigs.

With the SongBook Editor you can easily view, create, and edit your KORG Pa-Series SongBook entries and Set Lists using a Windows based computer. It can also be synchronized with iOS and Android tablets to become your handy external digital music sheet reader (third-party software required). Everything you need to play your song back perfectly is in the SongBook, a useful musical feature that is unique to KORG.

Improved connectivity

MIDI connection can now also be done through the USB HOST ports (in addition to the USB DEVICE and the MIDI ports). This allows for easy connection of controllers like digital pianos (for example, our HAVIAN 30), or the KORG nano and micro series, with no need of special adapters

Hear, Try and Compare the Korg PA1000 Professional Arranger in our showroom

Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Korg range including the PA1000 Professional Arranger and compare it with Yamaha, Roland, all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.

We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.

Keyboard
61 semi-weighted keys (C2 – C7) with velocity and aftertouch
System
Upgradable operating system, Multitasking, Load while play
Sound Generator
EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound
Polyphony
128 voices, 128 oscillators
Effects
Accompaniment/Song
2 insert effects; 2 master effects (148 types)
Keyboard Sounds
1 insert effect; 2 master effects (148 types)
Final mastering effects
Limiter, Master EQ
Voice Processor
EQ, Compressor, Gate, 3-voice Harmonizer (or Double), 2 x FX. Harmonizer, Double: Technology by TC•Helicon®
Presets
More than 30 Factory, 64 User
Guitar Processor
3 x FX. Presets: 45 Factory, 64 User
Sounds / Drum Kits
Factory
More than 1,750 Factory Sounds, including two multilayer Stereo Pianos with damper and body resonance, GM/XG sound sets and 107 Drum Kits
User
512 Sounds, 256 Drum Kits
Digital Drawbars
9 footages, percussion, key on/off, leakage, rotary speaker effect
DNC (Defined Nuance Control) Technology, Natural Ambience Drums Full Sounds/Drum Kits editing
Sampling
User PCM Sample memory
300 MB compressed (equivalent to 600 MB linear data)
Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice, Sampling
Styles
Factory
More than 430 Factory Styles, freely reconfigurable sets
User
1,152 locations, including User and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit
Style Creator Bot (MIDI Song to Style Converter)
Style controls
3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
Chord Sequencer
Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
Edit functions
Delete, Copy from Style/SongBook, Import/Export from/to SMF
Keyboard Set Library
Memorize Keyboard Sound settings
Factory
More than 300 Keyboard Sets, freely reconfigurable
User
864 locations, including User and Direct banks
'My Setting' special Keyboard Set
KAOSS FX
Automatic MIDI FX generator
More than 65 Factory Presets
Song Play
Patented XDS Crossfade Dual Sequencer Player with X-Fader control
Supported formats
MID, KAR, MP3+Lyrics, MP3+G
Two Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
MP3 Player / Recorder
Double MP3 Player and MP3 Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, KAOSS Effects
Sequencer
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook
Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
Compatibility
Pa-Series models
Styles, Performances/Keyboard Sets, Programs/Sounds, Songs, SongBook Entries, Pads
'i-Series' models
Styles
Pads
Four Assignable Pads + Stop buttons
Pad Record function
Controls
Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Quarter Tone and Arabic Scale memorized inside Keyboard Sets, Joystick, Audio In Volume, Mic FX Level, Harmony/Double On/Off, Mic/Guitar Preset, Audio In Mute ,2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock, Metronome On/Off, Dial, Search, Shift, Chord Scan (Lower, Upper), Split, Track Select, Record
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
Control Inputs
Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch
Audio Inputs
Line (Left/Right)
1/4" jacks, +20dBm, 12k Ohm
Mic/Guitar (Left)
1/4" jack, with Gain control (0 — +40dB)
12k Ohm (Mic) / 500k Ohm (Guitar)
Audio Outputs
Left/Right
1/4" jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output
1/4" jack, 16-200 Ohms (50 Ohms suggested)
Speaker System
Amplification
2 x 33 W
Speakers
2 x 100 mm woofers in bass reflex box, 2 x 25 mm dome tweeters
MIDI
IN, OUT
Standard MIDI connectors
USB to MIDI using the USB ports
Eight user definable MIDI Setups
USB
Type A
HOST, for memory and controllers x 2 (front/rear)
Type B
DEVICE, for personal computers and tablets x 1 (rear)
2.0 High-Speed connections (480 Mbit/s).
Storage
Internal memory
960 MB
USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover
Display
7" Wide capacitive color TouchView™ TFT display – Manual tilt system
Video Out
RCA connector
Clock
Internal System Clock
Power Consumption
100–240 Volts, 50/60 Hz, 25 Watt normal / 0.3 Watt in standby
Dimensions (W x D x H)
1030 x 378.3 x 133 mm / 40.55" x 14.89" x 5.36" (without music stand; height with music rest: 355.8 mm / 14")
Weight
10.75 kg / 23.7 lbs
Included Items
AC Power Cable, Music Stand, Quick Guide manual
Accessories
EXP-2 Foot Controller, XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (supports half-pedaling)
PS-1, PS-3 Pedal Switch
VOX V860 volume pedal
* All products names and specification names are trademarks or registered trademarks of their respective owners.
* Appearance and specifications of products are subject to change without notice.
