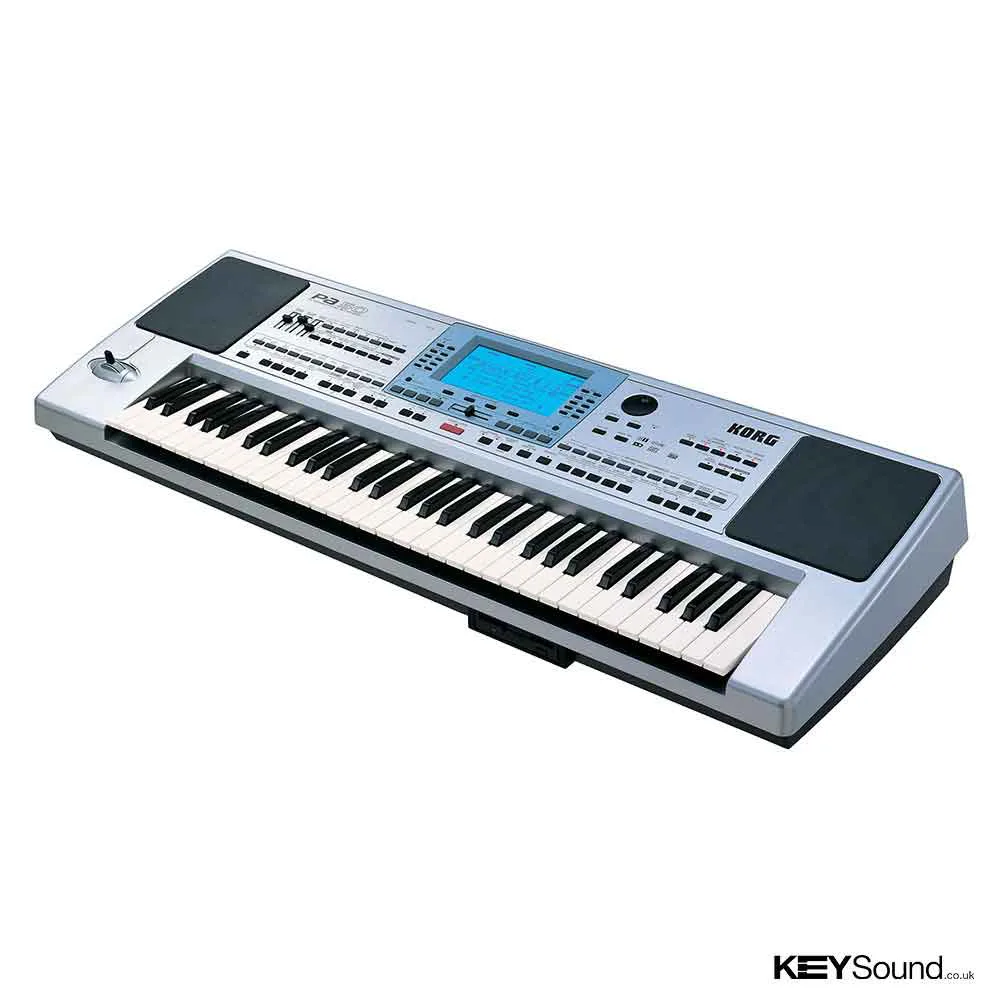

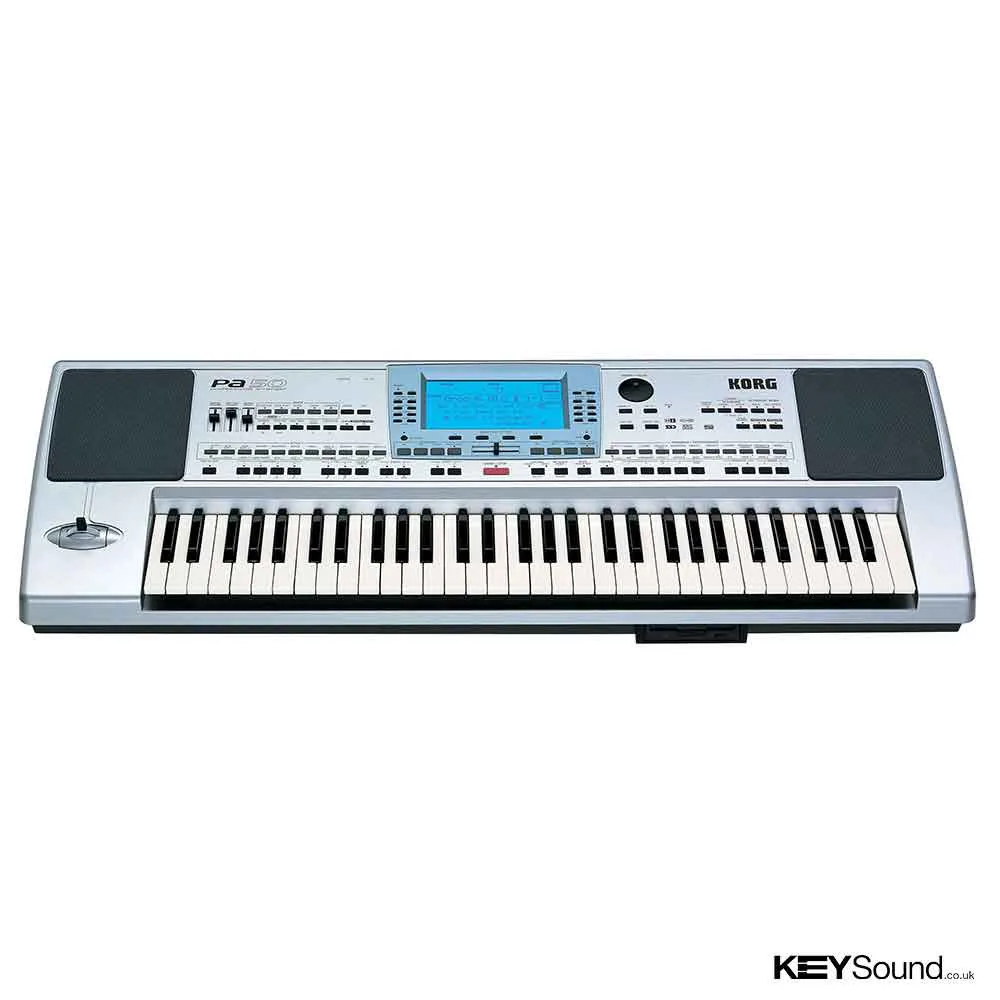

For years, the PA50 has been the most popular member of the Korg Pa family. Its amazing sound, ease of use, and affordable price point has proved a winning combination. Now, after much demand, the Pa50 has been brought up to date with the Pa50SD. Replacing the old-school floppy drive, the Pa50 instead offers fast and reliable SD data card storage. The use of SD data cards also makes it much more convenient to share and store data on a computer.
As a songwriting station or as a back-up band, you can be sure the Pa50SD’s performance will be truly musical. The Pa50SD combines enhanced sequencing functions, powerful performance features, custom backlit LCD, comprehensive arranging tools and impeccable sound quality.
Excellent Sound and Instant Control
Based on the TRITON synth engine the Pa50SD sound quality is second to none! Included with its 660 editable sound programs is a set of very expressive solo instruments, sampled with a natural vibrato. Four studio-quality effect processors are available and feature 89 different effect types. Four assignable pads, an assignable footswitch, the joystick, sync start, fade in and out, tap tempo, accompaniment reset and other front panel functions are available at your fingertips.
Musical Styles
Each of the 304 editable Styles provides up to eight accompaniment parts – drums, bass, percussion and more – that respond interactively with your playing. Eight parts, four Variations, two Fills, two Intros and two Endings per Style provide all you need to create a natural-sounding performance. In addition to the eight parts that comprise a Style, up to four sounds are available on the keyboard as real-time parts. The Pa50SD can also store 160 user defined Performance settings, each instantly recalling the style, sounds, effects, panning, transposition and other settings assigned to each part.
Extensive Sequencing
In addition to traditional real-time and step-time sequencing, the Pa50SD also features our unique Backing Sequencer, which can capture up to eight tracks of Style accompaniment and up to eight tracks of real time playing in a single pass. The PA50SD is GM and SMF compatible and in performance, nothing beats the revolutionary XDS Dual Sequencer. Lyrics embedded in SMF sequences are shown in the Display.
Rich, Stereo Sound
The Pa50SD features two dual-cone speakers in a reflex cabinet and twin 15 Watt amplifiers.
Hear, Try and Compare the Korg PA50SD Arranger Keyboard in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Korg range including the PA50SD Arranger Keyboard and compare it with
Yamaha, Roland, all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Keyboard
61 notes with velocity
System
OPOS – Objective Portable Operating System: Multitasking System, load while playing feature. Upgradeable Operating System. SSD Solid State Disk.
Tone generator
HI synthesis (Hyper Integrated synthesis system)
62 voices, 62 oscillators
Filters with resonance.
Waveform Memory
32 Mbyte PCM ROM (with Stereo Piano Sound).
Effects
4 stereo digital Multi-Effect systems (90 effect types).
Programs
More than 660 programs (including GM level 2 programs).
32 drum kits.
128 user programs + 64 user drum kits.
Styles
Up to 304 Styles in Solid State Disk (256 preload +48 User).
All reconfigurable; 8 accompaniment tracks.
All Style Performances are programmable (includes 4 Single Touch Settings for each style).
Styles Controls
4 Variations
2 Fills
2 Intros
2 Endings
Count In/Break
Synchro Start/Stop
Tap Tempo/Reset
Fade In/Out
Bass Inversion
Manual Bass
Tempo Lock
Memory
Accompaniment Volume
Accompaniment Mute
Drum Mapping
Snare & Kick Designation
Single Touch
General Controls
Master Volume
Ensemble
Octave Transpose
Master Transpose
Split Point
Style Change
Tracks Volume
Quarter Tone Function
Programmable Slider
Joystick
Dial
Multi PAD
4 assignable pads + Stop button.
Performance
160 real-time Performances + up to 304 Styles Performances
Song Play
XDS* Crossfade Dual Sequencer player – 2 Sequencers with separate Start/Stop,
Pause, ‘<< Rew’ and ‘>> FF’ controls.
Balance control. Lyrics are displayed on-screen.
Jukebox Function.
SMF Direct Player (format 0 and 1).
Song /Backing Sequence
Easy record – 16 tracks – SMF format.
Control Inputs
Damper Pedal, Assignable pedal/switch.
MIDI
In, Out, Thru.
Data Storage
SD (Secure Digital) data cards.

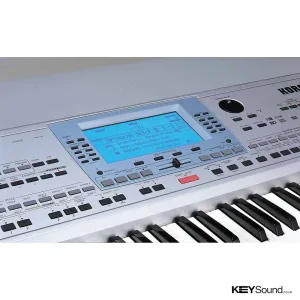

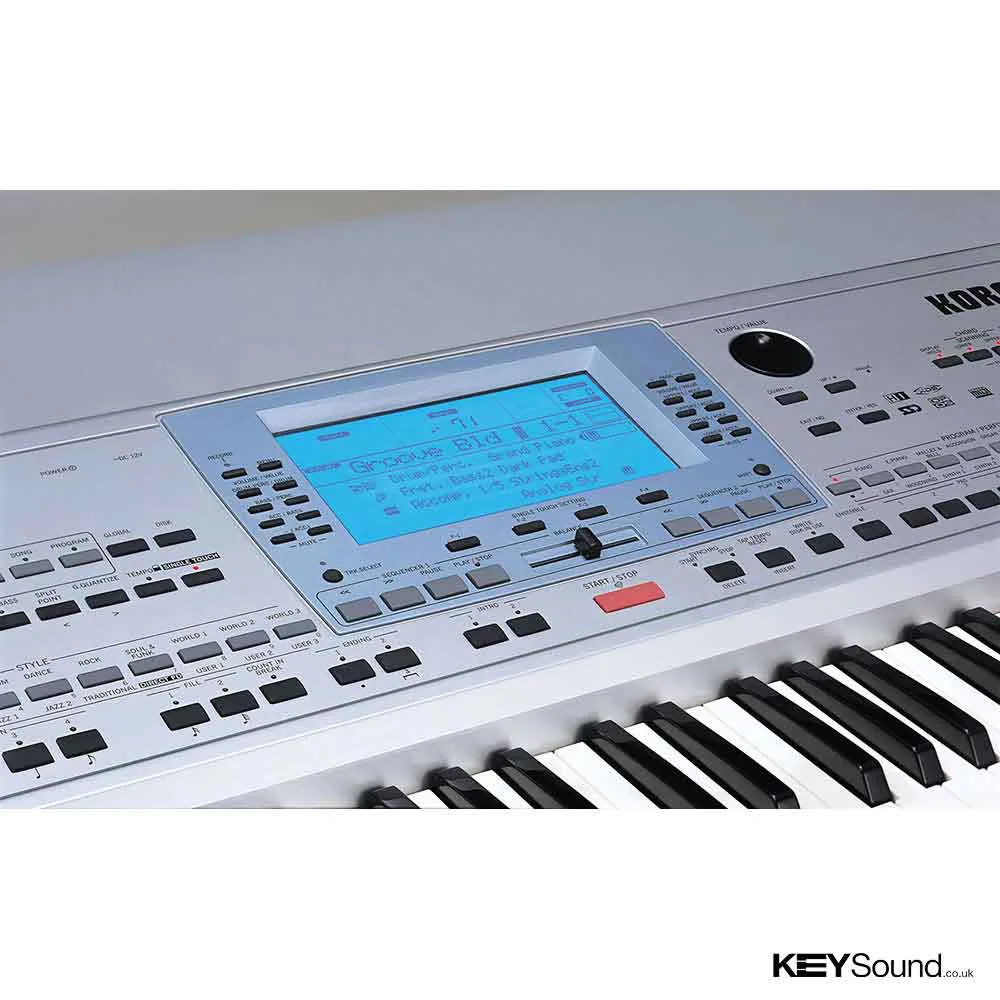

Display:
Backlit custom LCD.
Options
EXP-2 Foot Controller, XVP-10 Exp/Volume Pedal,
PS-1 Footswitch, DS-1H Damper Pedal
Main Amplifier
2x15 Watt
Speakers
2 dual cone speakers
(in Bass Reflex Box- Auto Loudness control).

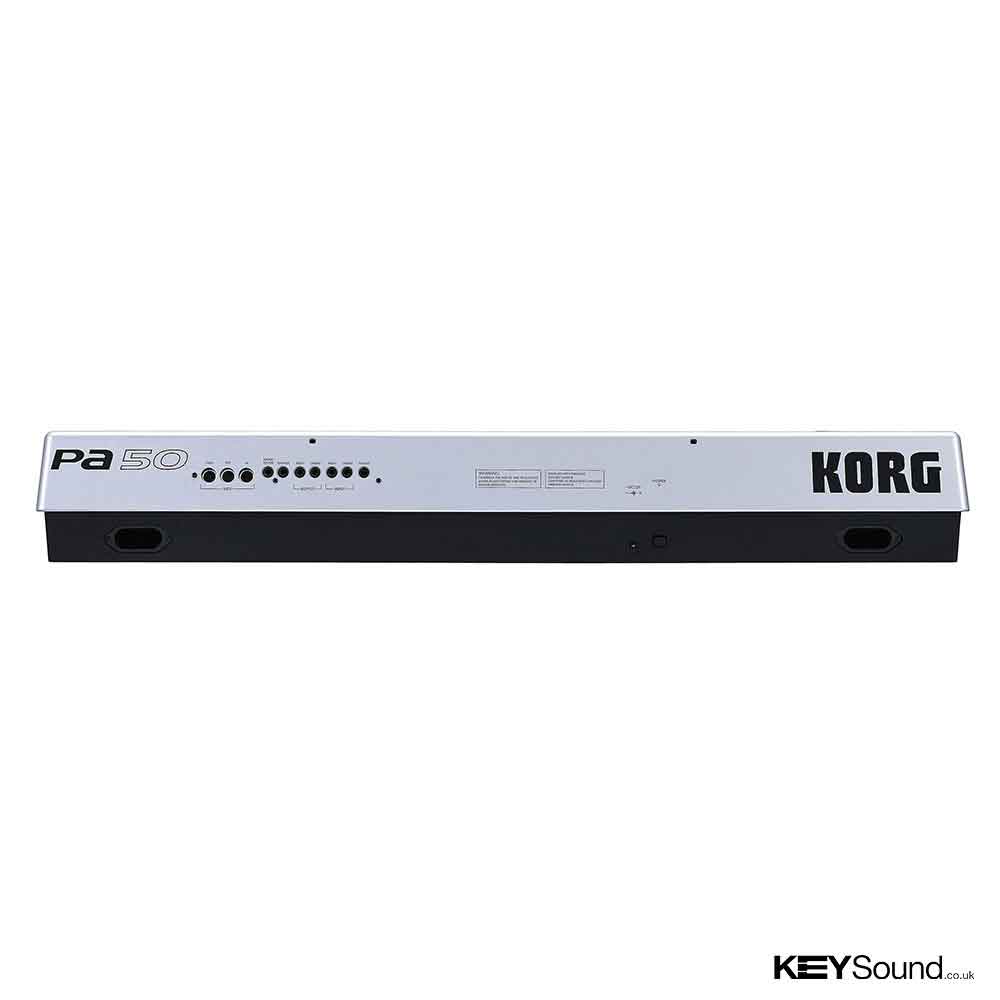

Audio Outputs
Left/mono, Right.
Audio Inputs
Left/mono, Right.
Power Consumption
26 Watts
Dimensions
41.5” W x 15.47” D x 5.9” H
Weight
24.8 lbs
