Introducing the most powerful and luxurious live workstation in Roland history. The Fantom-G is a dream instrument that redefines the boundaries of playability and creativity with its advanced sound engine, revolutionary ARX SuperNATURAL expansion bay, large-sized color LCD, powerful new audio/MIDI sequencer, first-class “Ivory Feel” weighted keys and more.
Driven by a powerful new audio processor, the Fantom-G provides new sonic depth and versatility. With twice the wave-ROM capacity of its predecessor, it contains a treasure trove of Roland’s world-famous SRX-quality sounds, but what really sets this instrument apart is its new ARX expansion, which allows additional SuperNATURAL sound-sets and fully dedicated synth and effects engines to be added to this already powerful live workstation.
SuperNATURAL ARX ExpansionFantom-G provides ARX slots that accommodate two SuperNATURAL expansion boards. SuperNATURAL is Roland’s unique behavior-modeling technology that enables a new level of organic, emotional expression previously unattainable in synthesizers. Applied to traditional-instrument sounds, SuperNATURAL enables the delicate, organic tonal changes and playing nuances of real musical instruments. It’s also a powerful tool for electronic and non-traditional sounds, breathing amazing new life and expression into synthesis.
Power Sequencer OnboardThe Fantom-G is the first Roland instrument to feature Roland’s newly designed power sequencer. In conjunction with the large-size LCD, this pro-level composition tool provides 128 tracks (including 24 audio tracks) in a fully intergraded audio/MIDI graphical environment. A mouse can be also incorporated for computer-like speed and ease. Other convenient features include combo XLR and TRS connector, phantom power for condenser mics, Hi-Z input for guitar and bass, and line input.

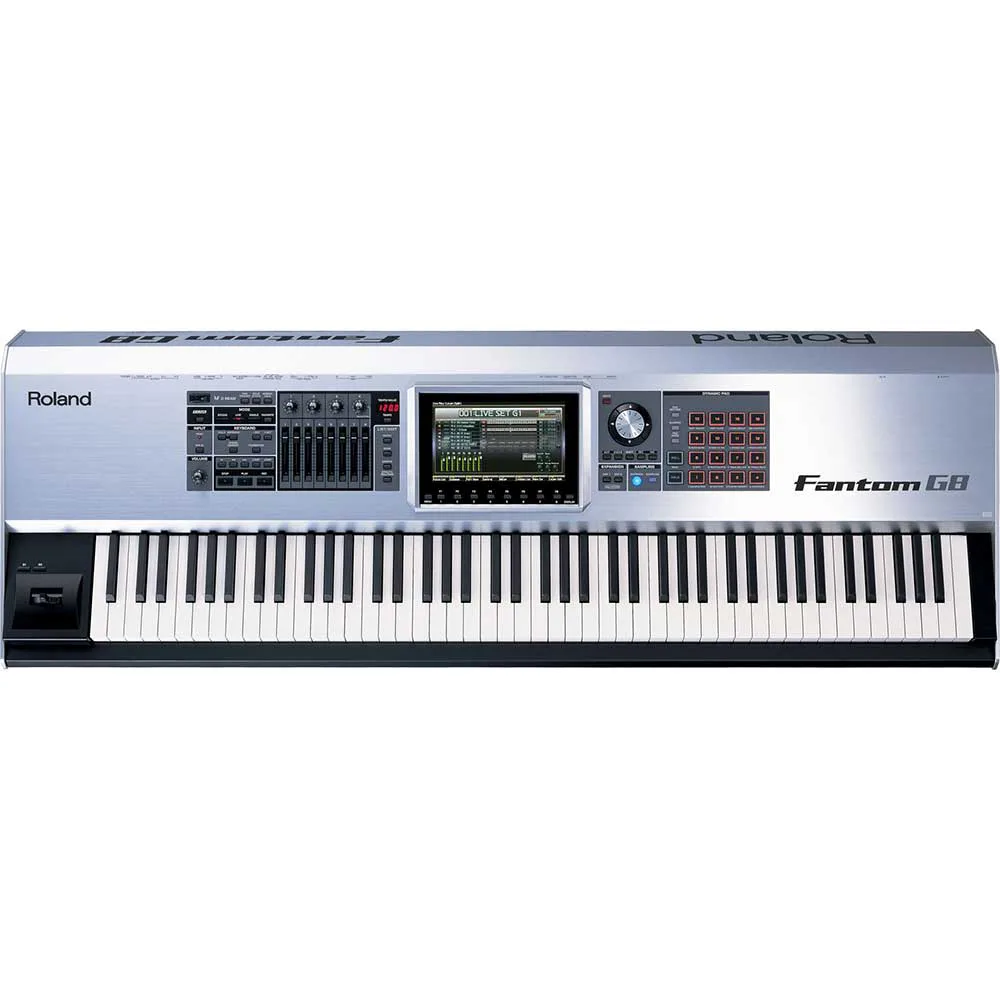

Luxurious Extra-Wide LCDOne look and touch and you’ll know that the Fantom-G is an instrument without equal. Only the highest-quality materials have been used to create this dream synth, with a stylish, futuristic design that will turn heads. Front and center is the extra-large 8.5” wide TFT color LCD for enhanced productivity. A first-class assortment of hands- on controls is provided as well, including eight sliders, four knobs, and ten buttons below the LCD.
Amazing FXFantom-G is loaded with a state-of-the-art effects engine, with multi-effects available for each Fantom-G sound/part. In 16-part multi-timbre mode, up to 22 effect routings can be used simultaneously. Create complex setups with 16 insert effects per multi-timbral patch group, plus global reverbs and choruses. Mastering effects are provided for polishing songs created with the onboard sequencer.
Supreme Keyboard Feel & ActionThe Fantom-G8 is outfitted with Roland’s top-of-the-line PHA II “Ivory Feel” keyboard. This amazing keyboard technology reproduces the real surface feel of ivory acoustic piano keys providing a familiar stability and comfort to the pianist. The white keys have a two-piece structure which reduces the developed keyboard surface material is designed to absorb moisture, ensuring a secure, slip-proof feel that your fingers will love.
Hear, Try and Compare the Roland Fantom-G8 in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Roland range including the Fantom-G8 and compare it with
Yamaha, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Keyboard Section | |
Keyboard | 88 keys PHA II Ivory Feel Keyboard with velocity and channel aftertouch |
Sound Generator Section | |
Mamimum Polyphony | 128 voices, shared with the sampling section |
Parts | 16 parts (Internal) + 16 parts (External) + 2 parts (ARX) + 24 parts (Audio Track) |
Wave Memory | 256MB (16-bit linear equivalent) |
Waveforms | 2,230 |
Preset Memory | Patches: 1,664 + 256 (GM2) Rhythm Sets: 64 + 9 (GM2) Live Sets: 512 Studio Sets: 128 |
User Memory (per one project) | Patches: 512 Rhythm Sets: 64 Live Sets: 512 Studio Sets: 128 |
Effects | Patch Multi-effects (PFX): max. 16 units (76 types) Multi-effects (MFX): max. 2 units (78 types) Chorus: 1 unit (3 types) Reverb: 1 unit (10 types) |
Sampling Section | |
Data Format | 16-bit linear, .WAV or .AIFF |
Sampling Frequency | 44.1kHz |
Maximum Sampling Time | approx. 360 sec, mono/180 sec, stereo (when sampling memory isn't expanded/32 MB) approx. 108 min, mono/54 min, stereo (fully expanded with DIMM/544 MB) |
Number of Samples | 2,000 (per one project) |
Sequencer Section | |
Tracks | MIDI tracks (Internal/External/ARX): max. 128 Audio tracks: max. 24 Tempo track: 1 Beat track: 1 |
Resolution | 480 TPQN |
Tempo | 5.00 to 300.00 |
Songs | 50 (per one project) |
Phrases | 2,000 (per one project) |
Notes Capacity | approx. 1,000,000 notes (per one project) |
Song Length | 9,998 measures |
Recording Method | Realtime recording, Step recording |
Others | |
Arpeggiater | 128 |
Arpeggio Sets | 128 |
RPS Sets | 32 |
Rhythm Pattern Sets | 32 |
Chord Memory | 128 |
Chord Memory Sets | 128 |
Display | Graphic Type, 8.5", Wide VGA (800 x 480 dots), backlit LCD (Color) |
Pads | 16 pads, Velocity and Polyphonic Aftertouch sensitive |
Controllers | Pitch Bend/Modulation Lever, Control Knob x 4, Control Slider x 8, Assignable Switch x 2, D Beam Controller |
Connectors | Mic/Guitar Input Jacks: 1/4 inch phone type/XLR type (Phantom power) (Hi-Z) Headphones Jack: Stereo 1/4 inch phone type, A (MIX) Output Jacks (L/MONO, R): 1/4 inch TRS phone type: B Output Jacks (L, R): 1/4 inch phone type: Input Jacks (L/MONO/MIC, R): 1/4 inch phone type, Pedal Jacks: Hold Pedal Jack (Half Pedal recognition), MIDI Connectors: IN, OUT, THRU, USB Connectors: USB Computer Connector (supports file transfer or mass storage class, and Audio/MIDI), Digital Audio Interface: COAXIAL INPUT/OUTPUT, AC Inlet |
Expansion Slots | ARX expansion boards: 2 slots DIMM: 1 slot, supports PC133, CL=2/3, 3.3 V, 128MB, 256MB, 512MB |
External Storage Device | USB Flash Memory |
Power Supply | AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz) |
Power Consumption | 30 W |
Accessories | Owner's Manual, CD-ROM (Editor, USB Audio/MIDI driver), Power Cord |
Options | Expansion Board: ARX Series, Keyboard Stand: KS-V7, KS-18Z, Pedal Switch: DP series, Foot Switch: BOSS FS-5U, Expression Pedal: EV-5, USB Memory: M-UF1G |
Size and Weight | |
Width | 1,396 mm |
55 inches | |
Depth | 502 mm |
19-13/16 inches | |
Height | 183 mm |
7-1/4 inches | |
Weight | 33.6 kg |
74 lbs. 2 oz. | |
The specifications are subject to change without notice. |
