GAIA SH-01: Synthesizer
Flash Back, Flash Forward
With its massive sound, hands-on ease and affordable price, the GAIA SH-01 is a high-performance value synth with old school charm. The triple stacked engine puts potent virtual analogue synthesis at your fingertips, yet the control panel is fun, friendly, and inviting, so even first-timers can create great sounds. The signal flow is simple to grasp, with logically arranged knobs, sliders, and buttons. Hands-on control and fat sounds make this little powerhouse a joy for music students, songwriters, session players, and live performers of all styles and ability levels.
Triple-fat virtual analogue
Sink your teeth into the new triple stacked virtual analogue engine, comprising three complete synths for incredibly thick, powerful sound. Unleash the beef of three oscillators which drive a trio of multimode, resonant filters, multi-shape LFOs, and amplifiers, plus nine envelope generators. It's like having three synthesizers in one! With 64 polyphonic voices onboard, the GAIA SH-01 makes it possible to play massive sounds without experiencing note drop out.
From the silkiest reverb to the grittiest growl, the SH-01's instantly selectable multi-effects will catapult your sounds into another dimension. You can layer up to five simultaneous effects for dozens of variations. The onboard effects include reverb, distortion, fuzz, bit crash, flanger, phaser, pitch shifter, low boost, and delay with panning and tempo sync. Dedicated control knobs are provided for tweaking the effects in real time.
At less than 10 pounds (approx. 4 kg / 9 lbs), the GAIA SH-01 is lightweight, compact, and great for musicians on the go. However, the 37-note keyboard is full-size, so performers can play naturally and comfortably. The synth can be powered via AC or batteries* for the ultimate in portable convenience. A battery-life indicator on the front panel ensures that you won't lose power unexpectedly. When used in conjunction with a battery-powered amp such as Roland's CUBE Street, MOBILE CUBE, BA-330 or KC-110, the GAIA SH-01 can be played and heard anywhere!
*Can be powered by eight rechargeable Ni-MH AA batteries.

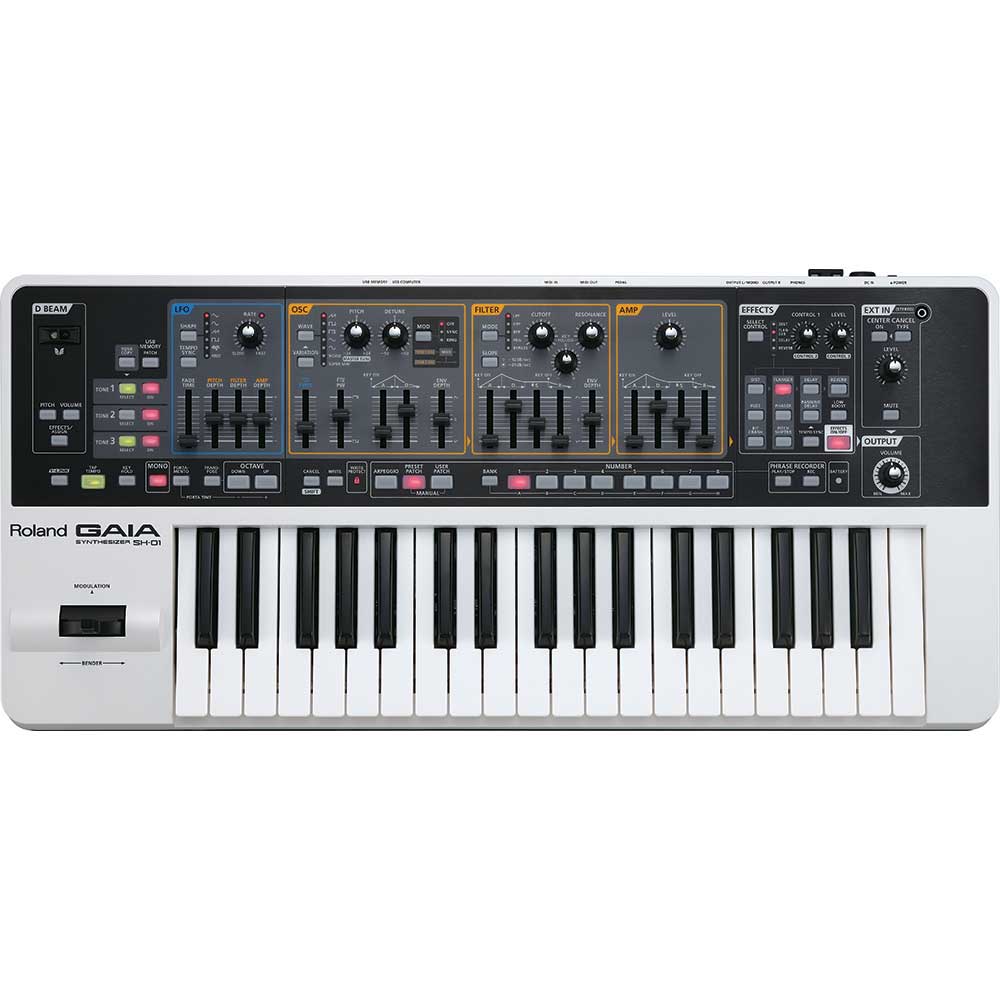

The front panel puts every control directly under your fingertips. There are no hidden menus you can just play. And move the knobs and sliders, or wave your hands over the invisible D Beam for dramatic effects. The logically designed front panel shows the signal path from left to right. It helps beginners understand synthesis, while experienced players will love the instant gratification of hands-on control during performance.
Phrase Recorder and arpeggiator
Hold a note or chord and let the arpeggiator create musical magic automatically for you. The tempo can be set via tap tempo. In addition, the onboard Phrase Recorder lets you record what you play on the keyboard as well as the movements of the knobs and sliders. The controller data can also be played back independently to complement the notes you play in real time.
USB and EXT IN
Connect directly to a computer (Mac or PC) with one simple USB cable, and stream audio directly to the software of your choice. The SH-01's USB ports can also be used to transmit and receive MIDI data, and to store your patches and phrases (recorded with the Phrase Recorder) to a USB memory stick. For integrating with external devices, the SH-01's EXT input lets you connect external audio sources such as an MP3-player and play along with your favourite songs or backing tracks, making it great for practice and live performance. Manipulate the incoming audio with three Center Cancel modes, which let you eliminate pre-recorded vocals, guitars, or bass.
37 keys (velocity sensitive)
Sound Generaor Section
Virtual analog synthesizer sound generator (Number of part: 1)
(Oscillator + Filter + Amp + Envelopes + LFO) x 3
PCM sound generator (Number of parts: 15)
SAW, SQUARE, PULSE/PWM, TRIANGLE, SINE, NOISE, SUPER SAW
PITCH, DETUNE, Pulse Width, Pulse Width Modulation
Attack, Decay, Envelope Depth
Oscillator Sync, Ring Modulation
(Tone 2's OSC 2 is applied as modulation to Tone 1's OSC 1.)
LPF, HPF, BPF, PKG (-12 dB/-24 dB)
CUTOFF, RESONANCE, KEY FOLLOW
Attack, Decay, Sustain, Release, Envelope Depth
Attack, Decay, Sustain, Release
TRIANGLE, SINE, SAW, SQUARE, Sample
RATE, FADE TIME, PITCH DEPTH, FILTER DEPTH, AMP DEPTH
Distortion, Fuzz, Bit Crash
Flanger, Phaser, Pitch Shifter
Delay, Panning Delay (with tempo sync function)
Control 1, Level
Pitch Bend/Modulation lever
D BEAM Controller
Preset pattern: 64
Number of Track: 1
OUTPUT jacks (L/MONO, R) (1/4 inch phone type)
Headphone jack (Stereo 1/4 inch phone type)
PEDAL jack (TRS phone type)
MIDI Connectors (IN, OUT)
USB COMPUTER (supports USB Hi-Speed Audio/MIDI)
USB MEMORY (supports USB 2.0 Hi-Speed flash memory)
EXT IN jack (Stereo miniature phone type)
DC IN jack
DC 9 V (AC Adaptor or rechargeable nickel-metal hydride AA batteries x 8)
* Batteries sold separately.
* Zinc-carbon batteries or alkaline batteries cannot be used.
Battery life for continuous use
Approximately 5 hours
* Using rechargeable nickel metal hydride batteries
* Approximately 4 hours if USB memory is connected
* Differs depending on the conditions of use
Owner’s Manual, Guide Book, CD-ROM (USB DRIVER), DVD Video, AC Adaptor (PSB-1U), Power Cord
Keyboard Stand: KS-18Z(*), Pedal Switch: DP series, Expression Pedal: EV-5, USB Memory: M-UF2G
* Make sure that this instrument is mounted at a height that is no higher than 1 meter.
Size and Weight
9 lbs. 5 oz.
In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
