SIMPLY CREATIVE

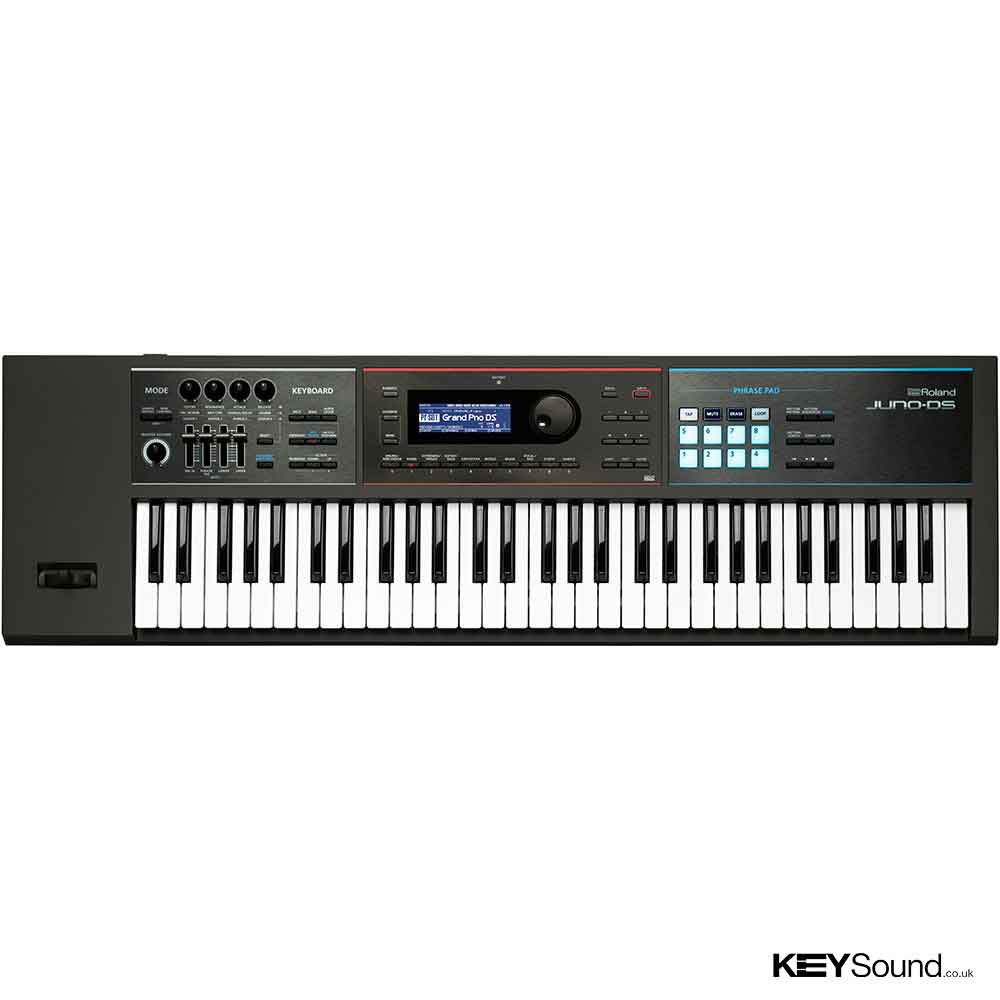

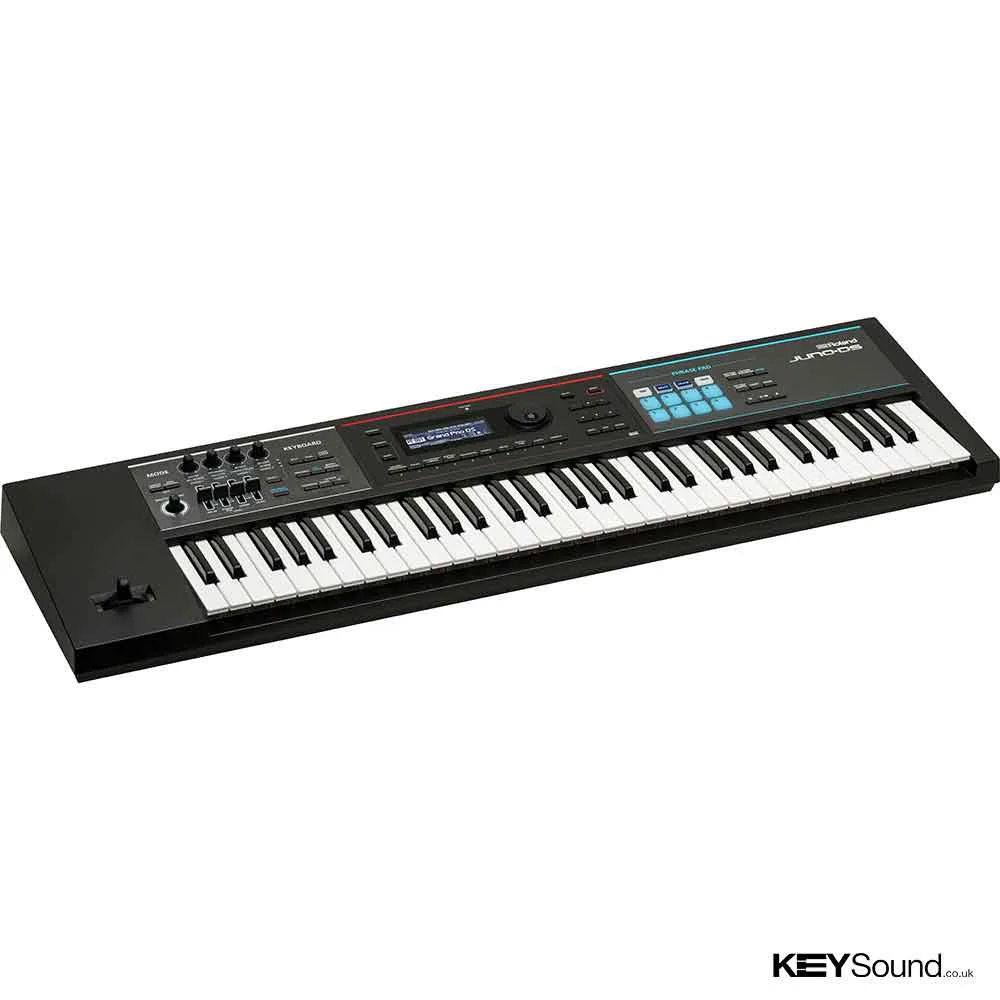

Roland’s JUNO synths are known everywhere for their great sound, ease of use, and exceptional value. The JUNO-DS61 takes the iconic series to a new level of performance, adding many powerful enhancements while still keeping operation streamlined and simple. Versatile, intuitive, and highly mobile, the JUNO-DS61 puts you in creative command, making it easy to produce exceptional music everywhere you play.
Mobile Design and Stage-Ready Sounds
The JUNO-DS61 is an ideal keyboard for all types of players, from performing pros and weekend warriors to music producers and home hobbyists. It also excels in teaching labs and other music education environments. Easy to carry and easy to use, the JUNO-DS61 is filled with great Roland sounds for any style or genre, and versatile battery or AC operation gives you the flexibility to play anytime and anywhere.
Top-Quality Pianos, Organs, and More
Acoustic pianos, electric pianos, and organs are bread and butter for most performing keyboardists. In the JUNO-DS61, the pianos have been newly enhanced with improved sound and response, and there are even more organs to choose from. In addition to this new DS Tone Bank, the instrument includes the entire 1000-plus sound set from the previous-generation JUNO-Di, and patches from that keyboard are fully compatible with the JUNO-DS61.
Enhanced Editing and Hands-On Controls
One thing that’s made the JUNO series a players’ favorite is its instant-access design, which makes it easy to call up fantastic sounds right away. But if you like to dig in and customize, the JUNO-DS61 now offers even more adjustable parameters than before, allowing you to tweak patches and performances with detailed precision. The front panel provides an expanded array of hands-on knobs and sliders for creating patches and adjusting sounds as you perform, while the rear panel features jacks for connecting hold and expression pedals at the same time.
Wave Expansion Slot for Adding New Sounds
To complement its impressive onboard sound set, the JUNO-DS61 supports internal waveform expansion via USB for unlimited tonal range. Over 1000 EXP sounds are available for free download at Roland’s Axial website, including top-quality acoustic piano collections, world instruments, go-to studio standards, percussion, loops, and more. If don’t find what you need there, it’s even possible to load in WAV files from your personal library and play them from the keyboard! Out of the box, the JUNO-DS61 comes with the versatile EXP-06 Studio Collection preloaded in the wave expansion slot.
Phrase Pads for Triggering Songs and Samples
With the JUNO-DS61’s eight Phrase Pads, you can supplement your keyboard performances with samples or music files stored on USB memory. Just load up the pads with whatever you like—one-shot samples, vocals, sound effects, loops, or complete music tracks—and trigger them with a quick touch when needed.
Mic Input with Vocoder and Auto Pitch
If you’re a solo performer or singer/songwriter, you’ll love the JUNO-DS61’s mic input, which lets you get great vocal sounds without having to carry around extra gear. There’s a dedicated vocal reverb, plus Auto Pitch for singing with the “stepped” electronic vocal effect popular in today’s music. The built-in vocoder is big fun too, allowing you to sing into a mic and control the tone and pitch via sounds played on the keyboard.
Eight-Track Pattern Sequencer
When you have an idea for a song or beat, you can easily capture and develop it with the onboard pattern sequencer. The intuitive, non-stop operation won’t interrupt your creative flow, letting you build up full arrangements with multiple sounds in no time. The sequencer is also perfect for enhancing live performances with pre-made backing music and on-the-fly looping.
Music Production Partner
The JUNO-DS61 is not only great on stage—it works great for computer music production as well. The integrated USB interface provides a solid front end for a mobile or studio recording setup, allowing you to record MIDI and audio data, including sounds from the mic input. There’s even a dedicated DAW Control mode for controlling your music software from the JUNO-DS61’s front panel.
Hear, Try and Compare the Roland Juno DS61 Synthesizer in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Roland range including the Juno DS61 Synthesizer and compare it with
Yamaha, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Keyboard
Keyboard
61 keys (with velocity)
Sound Generator
Maximum Polyphony
128 voices
Parts
16 parts
Preset Memory
- Patches: Over 1200
- Drum kits: Over 30
- Performances: 64
* GM2 compatible sounds are included.
User Memory
- Patches: 256
- Drum kits: 8
- Performances: 128
- Favorites: 100
Wave Expansion Slots
1 slot
* The wave expansion slot is rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the JUNO-DS's internal wave memory (slot).
Sample Import Function
File Format
Audio file: WAV (44.1 kHz, 16 bits)
Effects
- Multi-effects: 3 systems, 80 types
- Chorus: 3 types
- Reverb: 5 types
- Mic input reverb: 8 types
Audio File Player Section
File Format
Audio file: WAV, AIFF, MP3
Others
Rhythm Pattern
Preset: 30 groups x 8
Arpeggio
Preset: 128
Controllers
Pitch bend/Modulation lever
Control knob x 4
Level slider x 4
Multicolor pad x 8
Display
Graphic LCD 256 x 80 dots
External Storage Device
USB flash drive (supports USB 2.0 Hi-Speed flash memory)

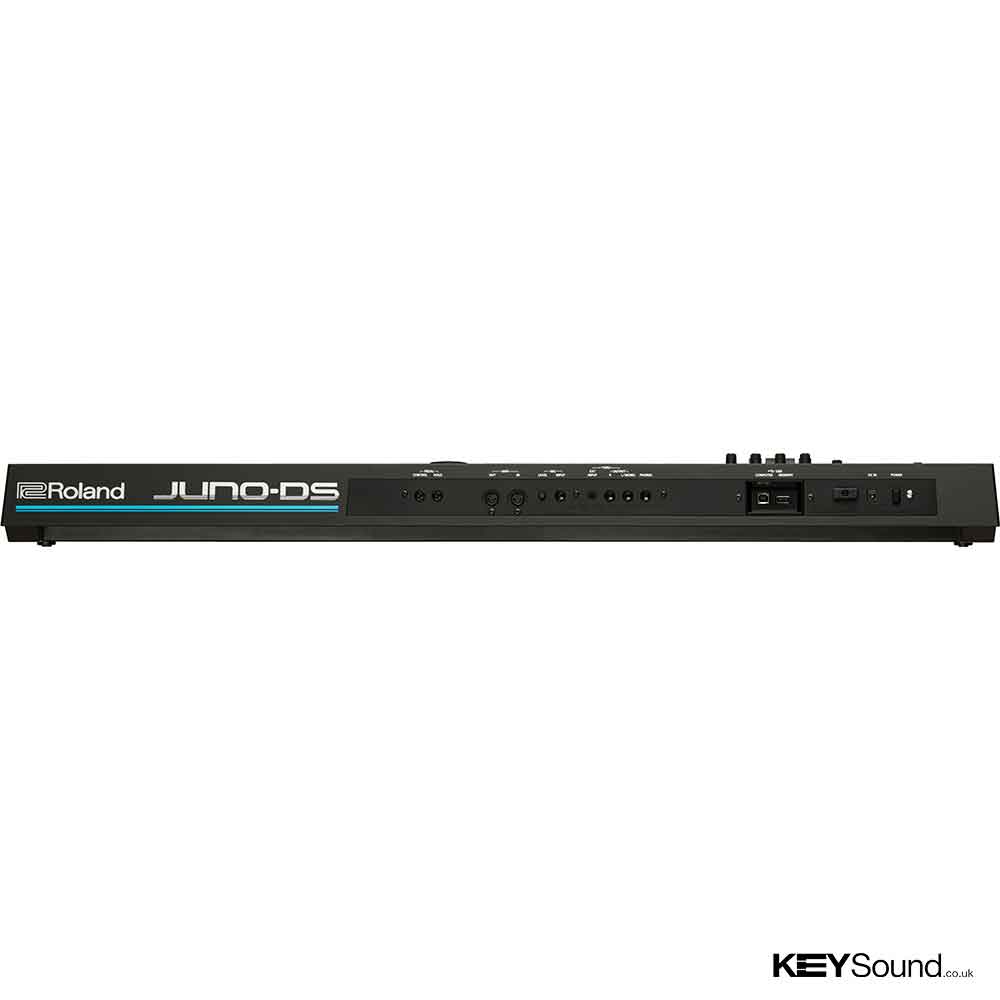

Connectors
PEDAL HOLD jack
PEDAL CONTROL jack
MIC INPUT jack: 1/4-inch phone type
EXT INPUT jack: stereo miniature phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PHONES jack: stereo 1/4-inch phone type
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (supports USB MIDI/AUDIO)
DC IN jack
Power Supply

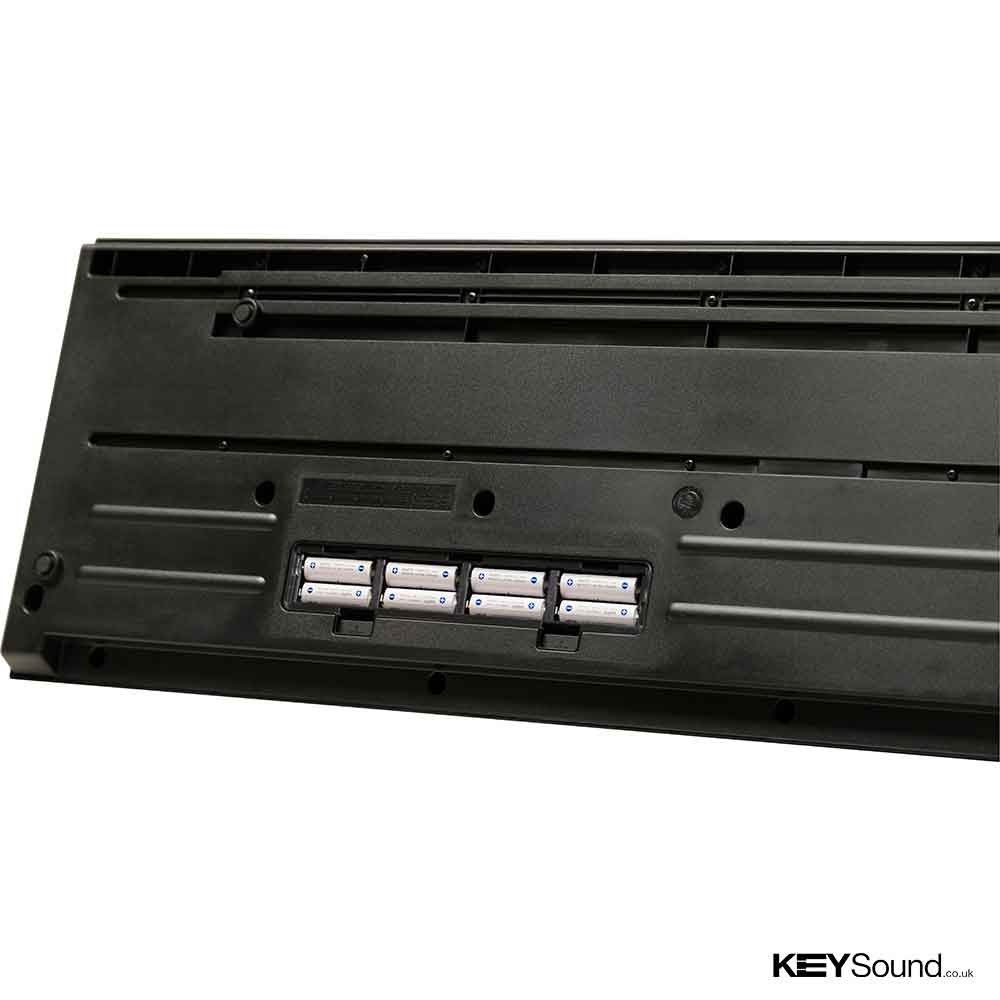

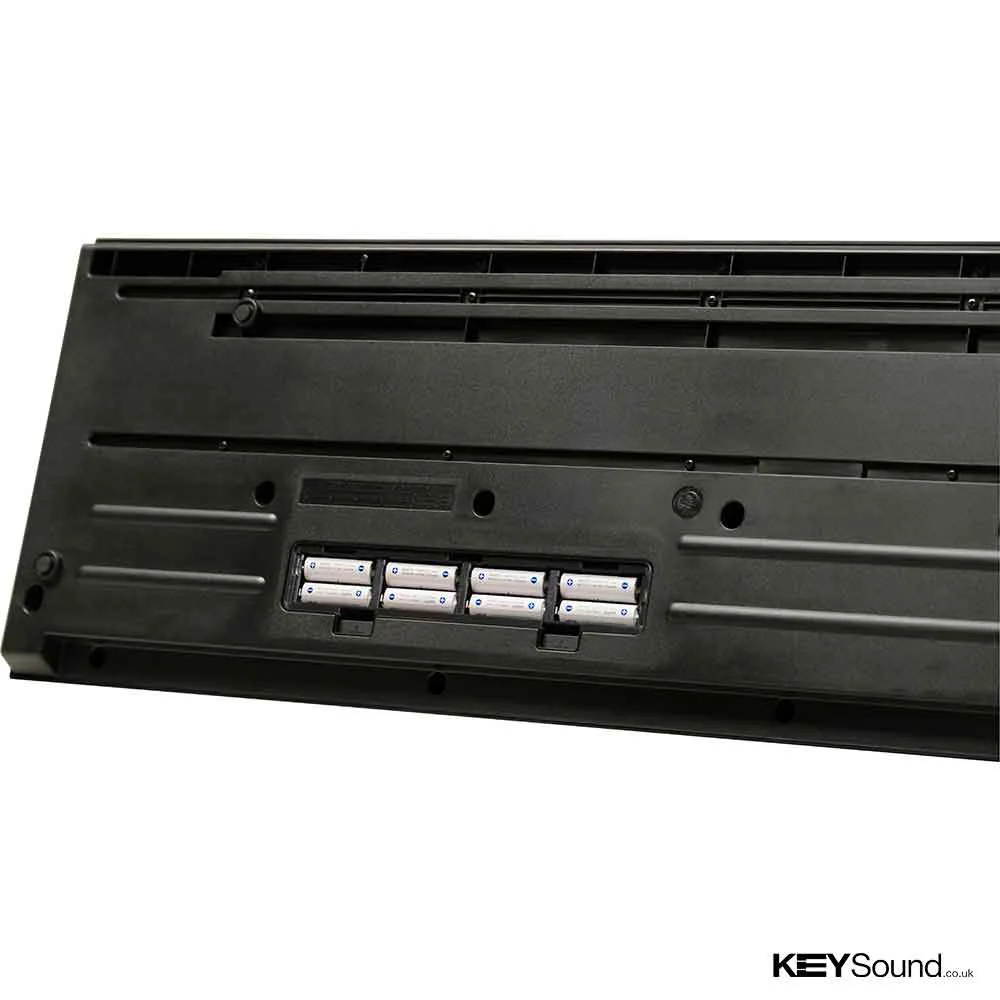

DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
* Battery life for continuous use (differs depending on the conditions of use)
Rechargeable nickel metal hydride batteries: approximately 5 hours (when using batteries having a capacity of 1900 mAh) (approximately 4 hours if USB flash drive is connected)
* Carbon-zinc or alkaline batteries cannot be used
Current Draw
600 mA
Accessories
Owner's manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Options (sold separately)
Keyboard stand (*1): KS-18Z, KS-12
Pedal switch: DP series
Expression pedal: EV-5
USB flash memory (*2)
*1 When using the KS-18Z, ensure that the height of the unit is one meter or lower.
*2 Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.
Size and Weight
Width
1,008 mm
39-11/16 inches
Depth
300 mm
11-13/16 inches
Height
97 mm
3-7/8 inches
Weight (excluding AC adaptor)
5.3 kg
11 lbs. 12 oz.
