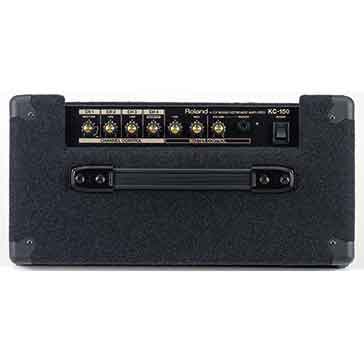

KC-150: Stereo Mixing Keyboard Amplifier
The KC-150 is a compact 65-watt amp with 4-channel capability including Auxiliary and Microphone inputs. The KC-150 can also be expanded with an optional subwoofer for a powerful low-end boost.
Hear, Try and Compare the Roland KC150 Keyboard Amplifier in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Roland range including the KC150 Keyboard Amplifier and compare it with
Yamaha, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Output
Rated Power Output
65 W
Speakers
30 cm (12 inches) x 1, Tweeter x 1
Nominal Input Level (1 kHz)
Channel 1 (MIC/LINE)
-50 to -20 dBu
Channel 2, 3, 4 (LINE)
-20 dBu
AUX IN
-10 dBu
Nominal Output Level (1 kHz)
LINE OUT
+4 dBu
SUB WOOFER OUT
+4 dBu
Controls
Channel 1 (MIC/LINE) Volume Knob
Channel 2 (LINE) Volume Knob
Channel 3 (LINE) Volume Knob
Channel 4 (MONITOR) Volume Knob
EQ (LOW) Knob
EQ (HIGH) knob
VOLUME knob
POWER Switch
Indicator
POWER

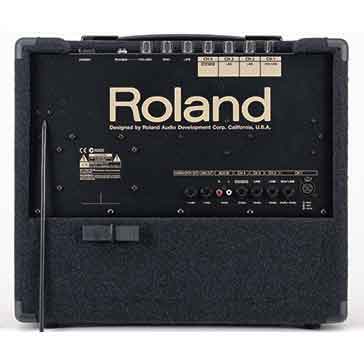

Connectors
Channel 1 Input Jacks (XLR type, 1/4" phone type)
Channel 2 Input Jack (1/4" phone type)
Channel 3 Input Jack (1/4" phone type)
Channel 4 Input Jack (1/4" phone type)
AUX IN Jacks (RCA phono type)
LINE OUT Jack (1/4" phone type)
SUB WOOFER OUT Jack (1/4" phone type)
PHONES Jack (1/4" TRS phone type, mono signal output)
Power Supply
Voltage
AC 117 V, AC 230 V, AC 240 V
Power Consumption
55 W
Accessory
Owner's Manual
Size and Weight
Width
480 mm
18-15/16 inches
Depth
295 mm
11-5/8 inches
Height
435 mm
17-1/8 inches
Weight
14.0 kg
30 lbs. 14 oz.
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
