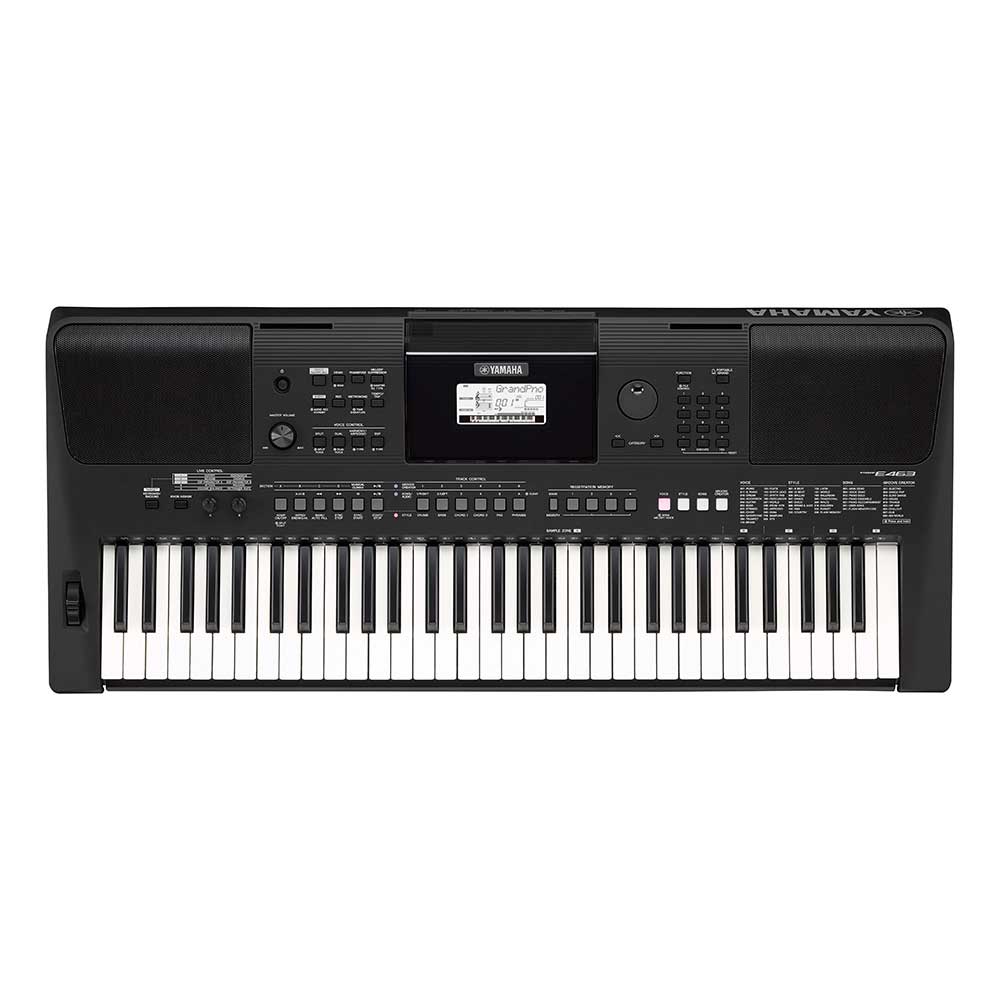

PSR-E463
PSR-E463 is the best entry keyboard for performing various styles of music, from the latest to vinyl favorites. It has a 61-key touch response keyboard with powerful on-board speakers and easy-to-use professional features like assignable Live Control knobs, Quick Sampling, Groove Creator and USB Audio Recorder.
Feature
Quick Sampling - The possibilities are endless
Capture your own sounds and play them back from the keyboard by capturing audio through the AUX IN and edit using the easy-to-operate Quick Sampling function!
Groove Creator - Make music like a DJ
You can perform the latest music styles from the keyboard like a DJ - lay down a beat, tweak the groove, adjust the mix and get the dance party started!
Sound
The better an instrument sounds, the more it inspires us
Yamaha has a proud history of manufacturing just about every kind of musical instrument. When it comes to reproducing the sound of these instruments in a keyboard, the results are detailed and high-quality.
The PSR-E463 features a comprehensive library of 758 instrument Voices that will allow you to enjoy playing any musical genre.
Real-time backing band tracks
235 Auto Accompaniment Styles provide real-time band backing tracks based on the chords you play.
World-wide EDM sound support your music
Groove Creator supports Western EDM (Electronic Dance Music) and various world-wide EDM grooves, allowing you to find just what you're looking for.
Function
High performance, more powerful
6W + 6W amplifiers drive the high-definition 12 cm Bass Reflex speakers, offering stunning clarity and detail.
Intuitive “Live Control Knob” interface
Change sounds on-the-fly by switching the effect destination!
Two assignable, real-time control knobs let you filter and adjust your sound just like an analog synthesizer.
10 DSP effects can be assigned and controlled by the knobs for dynamic and expressive live performance.
The Pitch Bend wheel adjusts the pitch of the sound bringing voices like the Guitar, Sax and Trumpet to life.
"Target" button supports quick target change of effect destination.
Arpeggio function
Tap into instant inspiration with the Arpeggio function, which has been improved for smoother playability. 'Hold Mode' and 'Allocated key-range' free your hands, allowing you to improvise over the pattern. The 150 Arpeggio patterns adjust and morph around the notes and chords you play on the keyboard allowing for almost limitless creativity.
Connecting
Connect to portable devices or computers for even more fun
The PSR-E463 features audio transfer through the USB TO HOST terminal*, allowing you to record your performance to your computer or smart device.
Connecting to your iOS device adds a new dimension of MIDI control with apps.
Connect an external audio player to the AUX IN jack and you can play along with your favorite tunes. The built-in, advanced Melody Suppressor lowers the volume of vocals and melody lines of the original recordings, leaving that part open for you to play or sing**.
*For iOS device connection, refer to the "iPhone / iPad Connection Manual"
**Depending on the song, the volume of the melody part may not be affected.
iPhone / iPad Connection Manual
More convenient USB TO DEVICE terminal
You can record your performances to USB Flash Drives. The USB TO DEVICE terminal on the instrument lets you load and save your settings and songs to a USB flash drive, as well as transfer data from your PC.
Hear, Try and Compare the Yamaha PSRE463 Arranger Keyboard in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Yamaha range including the PSRE463 Arranger Keyboard and compare it with
Roland, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
PSR-E463 | ||
---|---|---|
Body | Color | Black |
Dimensions | Width | 946 mm (37-1/4") |
Height | 139 mm (5-1/2") | |
Depth | 404 mm (15-15/16”) | |
Weight | Weight | 6.6 kg (14 lb, 9 oz) not including batteries |
Keyboard | Number of Keys | 61 |
Touch Response | Soft, Medium, Hard, Fixed | |
Other Controllers | Pitch Bend | Yes |
Control Knobs | Yes | |
Display | Type | LCD (Liquid Crystal Display) |
Language | English | |
Panel | Language | English |
Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
Polyphony | Number of Polyphony (Max.) | 48 |
Preset | Number of Voices | 758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices) |
Featured Voices | 8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices | |
Compatibility | GM | Yes |
XGlite | Yes | |
Types | DSP | 10 types (assignable on control knobs) |
Reverb | 12 types | |
Chorus | 5 types | |
Master EQ | 6 types | |
Harmony | 26 types | |
Functions | Dual/Layers | Yes |
Split | Yes | |
Arpeggio | 150 types | |
Melody Suppressor | Yes | |
Crossfade | Yes (for Internal/AUX IN) | |
Preset | Number of Preset Styles | 235 |
Fingering | Multi finger | |
Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF | |
File Format | Style File Format (SFF) | |
Other Features | One Touch Setting (OTS) | Yes |
Expandability | Expansion Style | 10 |
Preset | Number of Groove | 35 |
Number of Sections | 5 (4 Sections + 1 Musical Climax/Ending) | |
Preset | Number of Preset Songs | 30 |
Recording | Number of Songs | 10 |
Number of Tracks | 6 (5 Melody + 1 Style/Groove Creator) | |
Data Capacity | Approx. 19,000 notes (when only “melody” tracks are recorded) | |
Recording Function | Yes | |
Compatible Data Format | Playback | SMF (Formats 0 & 1) |
Recording | Original File Format (SMF 0 conversion function) | |
Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song | |
Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
Recording | WAV (44.1 kHz, 16 bit, stereo) | |
Sampleing Type | Normal, Oneshot, Loop | |
Samples (Preset/Usesr) | 5 | |
Sampling Time | Approx. 9.6 sec | |
Sampling Sources | AUX IN | |
Sampling Format | Original File Format (16 bit, stereo) | |
Sampling Rate | 44.1 kHz | |
USB audio interface | 44.1 kHz, 16 bit, stereo | |
Registration | Number of Buttons | 4 (x 8 banks) |
Lesson/Guide | Yamaha Education Suite (Y.E.S.) | Lesson 1 – 3 (Listening, Timing, Waiting), Repeat & Learn, Chord Dictionary |
Overall Controls | Metronome | Yes |
Tempo Range | 11 – 280 | |
Transpose | -12 to 0, 0 to +12 | |
Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) | |
Scale Setting | Yes | |
Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
Storage | Internal Memory | Approx. 1.73 MB |
External Drives | USB flash drive | |
Connectivity | DC IN | DC IN 12 V |
AUX IN | Yes (Stereo-mini) | |
Headphones | x 1 (PHONES/ OUTPUT) | |
Sustain Pedal | Yes | |
USB TO DEVICE | Yes | |
USB TO HOST | Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo) | |
Amplifiers | 6 W + 6 W (When using PA-150 AC adaptor) | |
Speakers | 12 cm x 2 | |
Power Supply | AC Adaptors (PA-150 or an equivalent recommended by Yamaha) or batteries (Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries) | |
Power Consumption | 8 W (When using PA-150 AC adaptor) | |
Auto Power Off Function | Yes | |
Included Accessories | Music Rest | Yes |
Song Book | Download from website |
