A new generation of digital keyboard
With its stunning design featuring new voices and styles, DJ functions the PSR-S670 is a performance keyboard like no other.
Features
Powerful features for live performance
The PSR-S670 features two assignable live controllers, a modulation wheel and two assignable footswitch inputs, ensuring that you have total control over voices, styles, effects and other functions during live performance.
A new concept for performing live

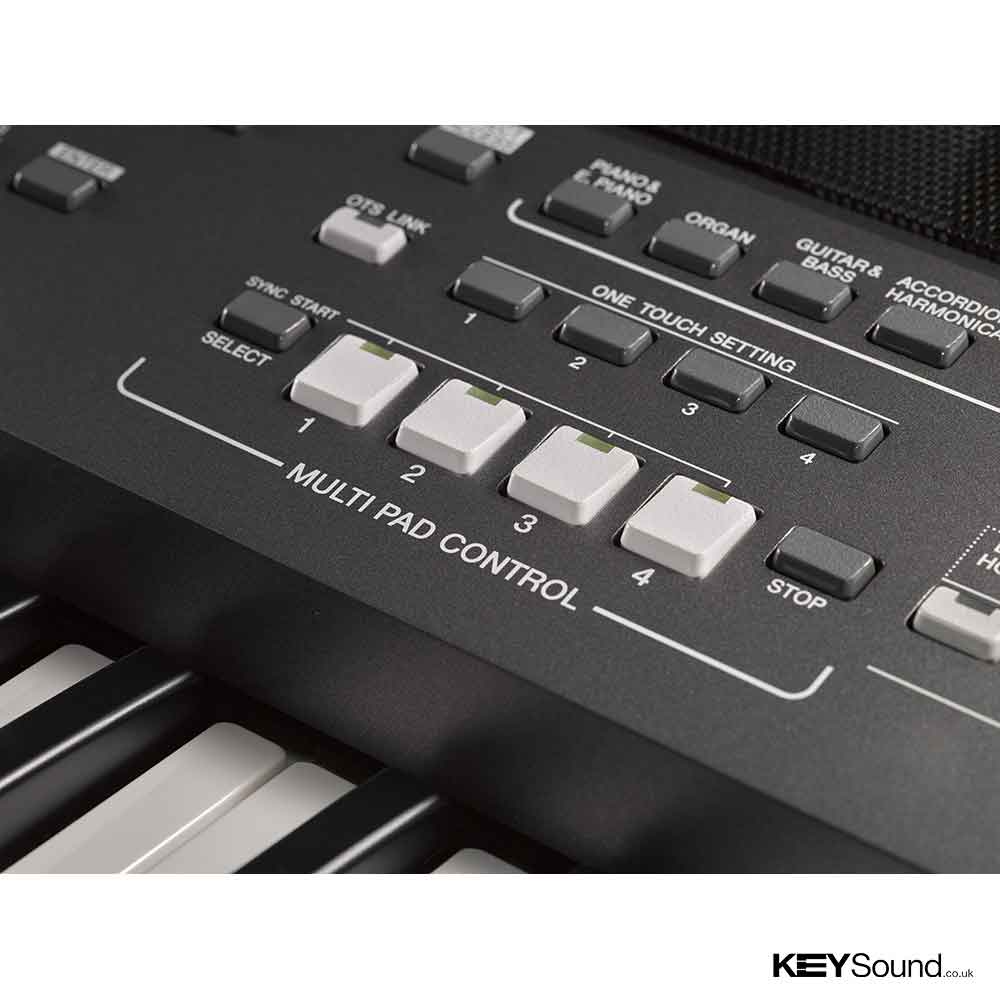

DJ Styles are a new live performance concept featuring a collection of programmed chord progressions. This leaves both hands free to play melody lines, use the live controllers or even trigger additional audio samples with the Multi Pad. With new arpeggio function, PSR-S670 will play the phrase for you when you are holding chord.
Outstanding sound quality for virtually any type of music
Enjoy authentic acoustic sounds at your fingertips- play pianos, saxophones and other instruments, all with breath-taking reality; or explore the powerful synthesizer sounds, with incredible sonic capability for electronic music of all types.
Let your music take you to new places
Voice & Style Expansion Packs enable you to customize the PSR-S670 with a wide range of additional content from all over the world. When loaded into the keyboard, you can instantly access authentic new sounds, rhythms, and backing in the musical style of your choice. For even more versatility, use Yamaha Expansion Manager version 2.3 (or later) to link the PSR-S670 to your computer.* Yamaha Expansion Manager allows you to create individual expansion data sets containing content from various packs. You can even create your own voices based on your samples.
*(available during 2015)
Great on stage, in the studio or at home

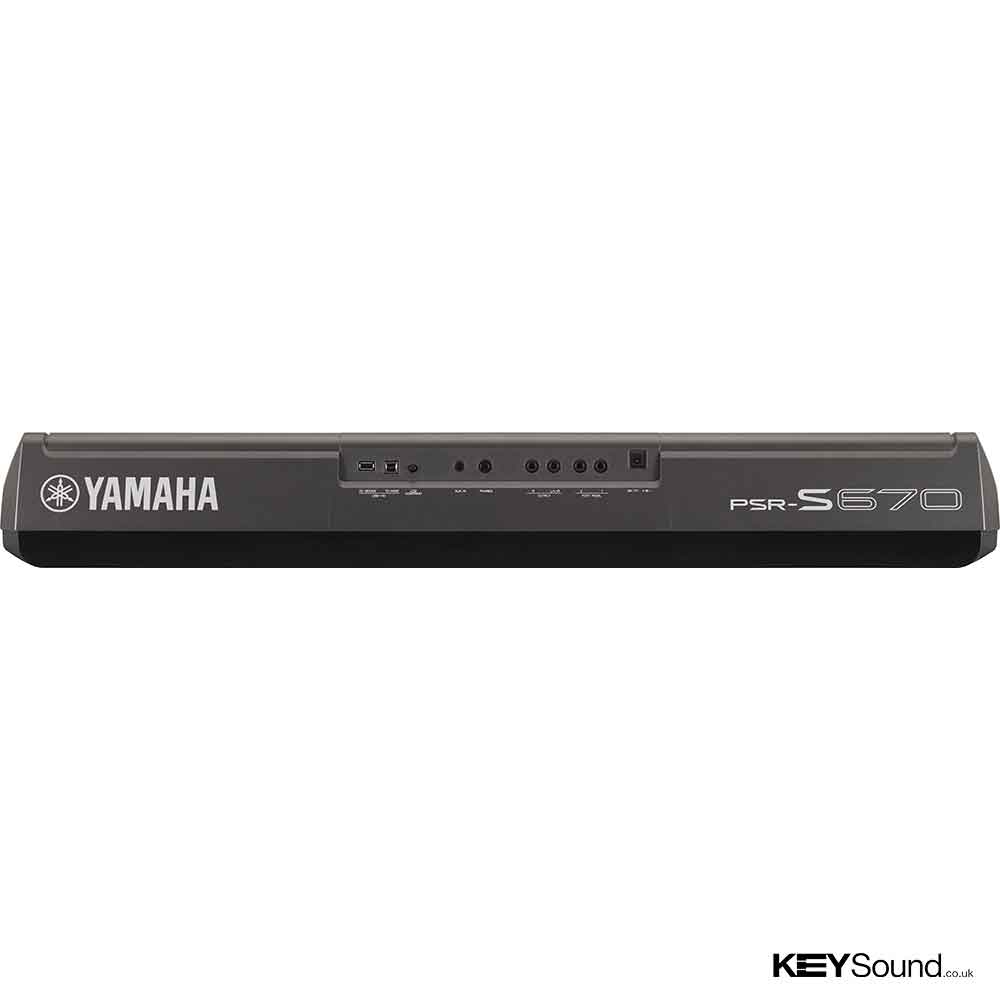

Audio data can be played back with the USB Audio Player or triggered using the Audio Link Multi Pad function, giving you even more creative options. The PSR-S670 also has an AUX IN input to connect your audio player and a dedicated line output that makes it easy to use the PSR-S670 with a PA system for larger venues.
Chord Tracker
Identify the chord sequence from an audio track instantly with the Yamaha Chord Tracker app!
The Yamaha Chord Tracker app for iPhone and iPad helps practicing and performance by extracting the chord sequence of an audio song stored on your device.
Hear, Try and Compare the Yamaha PSRS670 Arranger Workstation in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Yamaha range including the PSRS670 Arranger Workstation and compare it with
Roland, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
| Dimensions | Width | 1,002 mm (39 7/16") |
|---|---|---|
| Height | 148 mm (5 13/16") | |
| Depth | 437 mm (17 3/16") | |
| Weight | Weight | 11 kg (24 lbs., 4 oz.) |
| Keyboard | Number of Keys | 61 |
|---|---|---|
| Type | Organ | |
| Touch Response | Hard 2, Hard 1, Medium, Soft 1, Soft 2 | |
| Other Controllers | Pitch Bend | Yes |
| Modulation | Yes | |
| Multi Pads | 126 banks x 4 Pads | |
| Display | Type | B/W LCD |
| Size | 5.7 inch (320 x 240 dots STN QVGA ) | |
| Contrast | Yes | |
| Language | English, German, French, Spanish, Italian | |
| Panel | Language | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
|---|---|---|
| Polyphony | Number of Polyphony (Max.) | 128 |
| Preset | Number of Voices | 678 Voices + 28 Drum/SFX Kits + 480 XG Voices + GM2 + GS (for song playback) |
| Featured Voices | 38 Super Articulation Voices, 18 Mega Voices, 24 Sweet! Voices, 46 Cool! Voices, 29 Live! Voices, 10 Organ Flutes! | |
| Expandability | Expansion Voice | Yes (approx. 64 MB max.) |
| Editing | Voice Set | |
| Part | Right 1, Right 2, Left | |
| Compatibility | XG, XF, GS, GM, GM2 | |
| Types | Reverb | 44 Presets + 3 User |
|---|---|---|
| Chorus | 71 Presets + 3 User | |
| DSP | DSP 1: 295 Presets + 3 User, DSP 2-4: 128 Presets + 10 User | |
| Master EQ | 5 Presets + 2 User | |
| Part EQ | 28 Parts (Right 1, Right 2, Left, Multi Pad, Style x 8, Song x 16) | |
| Mic Effects | - | |
| Vocal Harmony | Number of Presets | - |
| Number of User Settings | - | |
| Vocal Effect | - | |
| Preset | Number of Preset Styles | 325 |
|---|---|---|
| Featured Styles | 295 Pro, 30 Session | |
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard | |
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | |
| Other Features | Music Finder | 1,200 Records |
| One Touch Setting (OTS) | 4 for each Style | |
| File Format | Style File Format, Style File Format GE | |
| Expandability | Expansion Style | Yes |
| Expansion Audio Style | - | |
| Preset | Number of Preset Songs | 5 |
|---|---|---|
| Recording | Number of Songs | Unlimited (depending on USB flash memory capacity) |
| Number of Tracks | 16 | |
| Data Capacity | approx. 300 KB/Song | |
| Recording Function | Quick Recording, Multi Recording, Step Recording | |
| Compatible Data Format | Playback | SMF (Format 0 & 1), XF |
| Recording | SMF (Format 0) |
| Registration | Number of Buttons | 8 presets/bank (unlimited number of banks, depending on USB flash memory capacity) |
|---|---|---|
| Control | Registration Sequence, Freeze | |
| Lesson/Guide | Lesson/Guide | Follow Lights, Any Key, Karao-Key, Your Tempo |
| Performance Assistant Technology (PAT) | Yes | |
| Demo/Help | Demonstration | Yes |
| USB Audio Recorder | Playback | .wav |
| Recording | .wav | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500, Tap Tempo | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440 – 466.8 Hz | |
| Octave Button | Yes | |
| Scale Type | 9 Presets | |
| Miscellaneous | Direct Access | Yes |
| Text Display Function | Yes | |
| Wallpaper Customization | - | |
| Voices | Voice Creator | Yes |
| Harmony/Echo | Yes | |
| Panel Sustain | Yes | |
| Mono/Poly | Yes | |
| Voice Information | Yes | |
| Styles | Style Creator | Yes |
| Style Recommender | Yes | |
| OTS Information | Yes | |
| Songs | Song Creator | Yes |
| Score Display Function | Yes | |
| Lyrics Display Function | Yes | |
| Multi Pads | Multi Pad Creator | Yes |
| USB Audio | Time Stretch | - |
| Pitch Shift | - | |
| Vocal Cancel | - |
| Storage | Internal Memory | approx. 1.9 MB |
|---|---|---|
| External Drives | USB Flash Memory, etc. (via USB to DEVICE) | |
| Internal Memory (for Expansion Pack) | approx. 64 MB | |
| Connectivity | DC IN | 16V |
| Headphones | Yes | |
| FOOT PEDAL | (optional) Switch or Volume x 2 | |
| Microphone | - | |
| MIDI | In/Out | |
| AUX IN | Yes | |
| OUT PUT | (R, L/L+R) | |
| VIDEO OUT | - | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes |
| Amplifiers | 15 W x 2 | |
|---|---|---|
| Speakers | 13 cm + 5 cm (x 2) | |
| Power Supply | PA-300C or an equivalent recommended by Yamaha | |
|---|---|---|
| Power Consumption | 13 W | |
| Auto Power Off Function | Yes | |
| Included Accessories | AC Adaptor | PA-300C |
|---|
| Preset | Number of Multi Pad Banks | 123 banks x 4 Pads |
|---|---|---|
| Audio | Audio Link | Yes |
