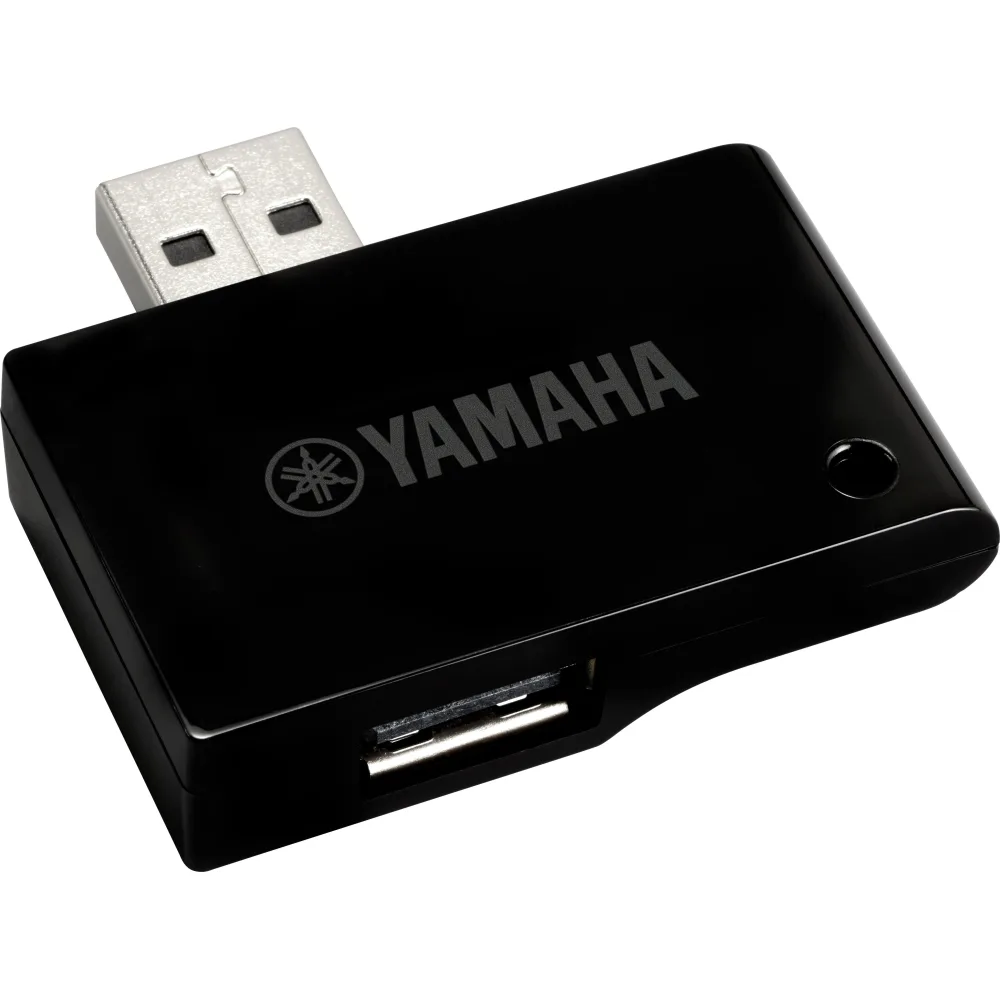

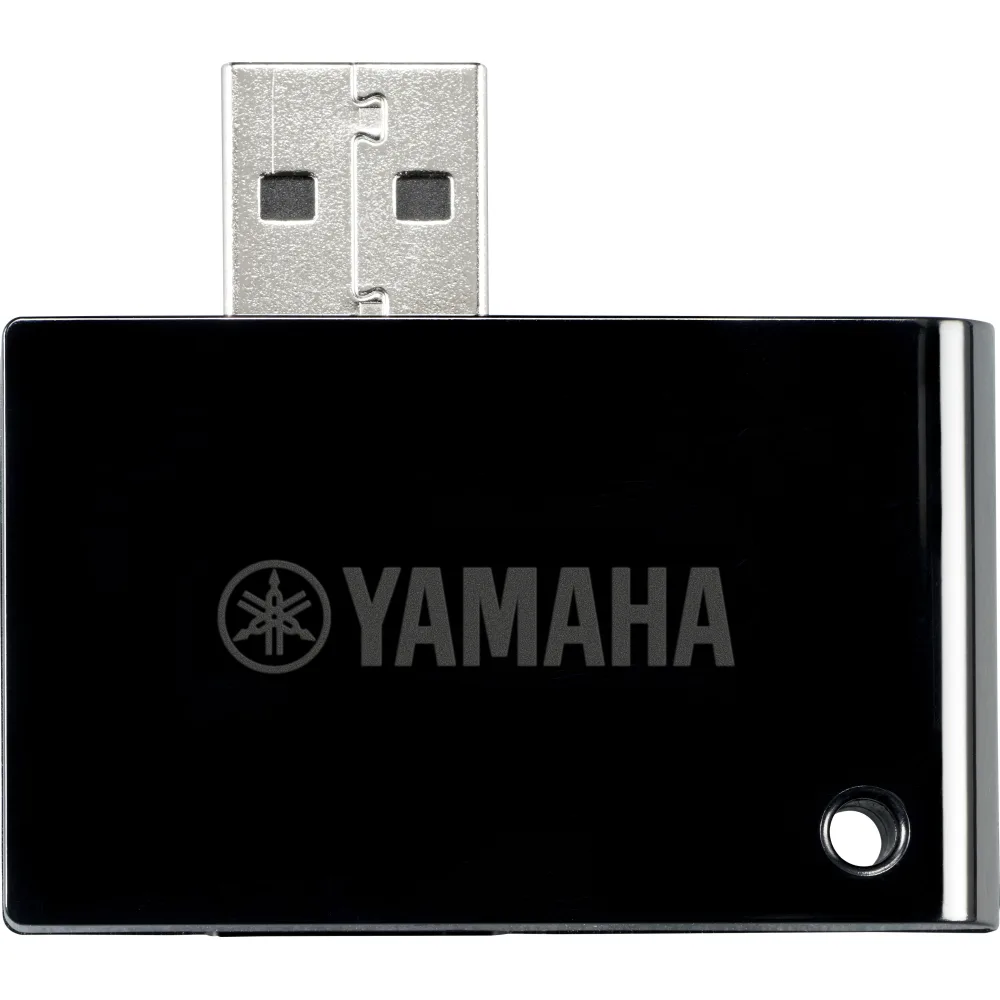

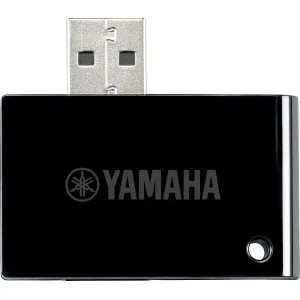

Yamaha UD-BT01 Bluetooth Wireless MIDI Adaptor
The Yamaha UD-BT01 is a compact Bluetooth wireless MIDI adaptor designed for compatible Yamaha digital pianos, keyboards and other musical instruments equipped with a USB TO HOST terminal.
By connecting the UD-BT01 to your instrument, MIDI data can be transmitted wirelessly between the instrument and a compatible iPhone, iPad, iPod touch or Mac. This provides a convenient way to use supported music applications without having to connect your mobile device directly to the instrument with a cable.
The UD-BT01 uses Bluetooth Low Energy MIDI technology for wireless communication and supports Bluetooth 4.0 compatible devices. This makes it a useful accessory for controlling supported instrument functions, working with compatible music applications and transmitting MIDI performance data wirelessly.

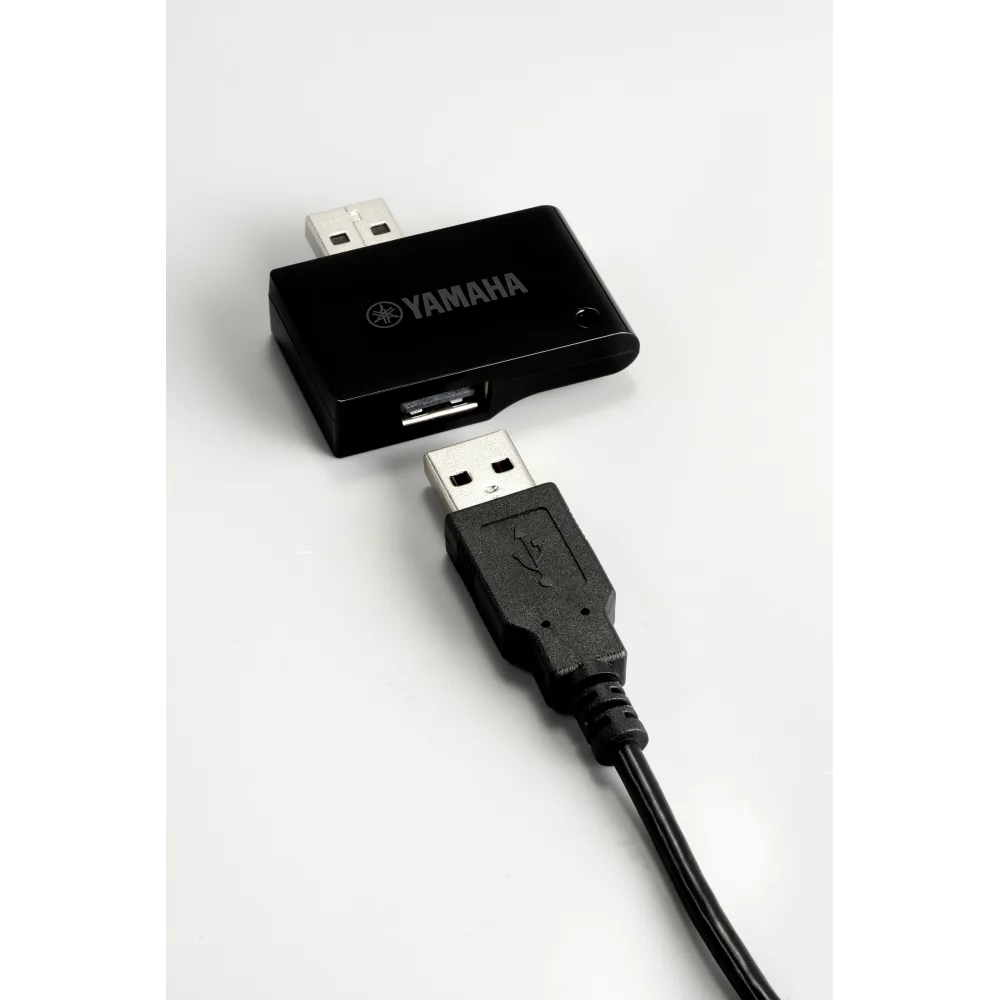

The adaptor connects to the USB TO HOST terminal of your instrument using a USB cable. The UD-BT01 also requires an external USB AC adaptor for power. Once connected, Bluetooth MIDI can be enabled from within a compatible application on your iOS device or Mac.
Measuring just 45 x 12 x 40 mm and weighing only 10 g, the UD-BT01 is compact enough to become a discreet part of your keyboard setup. Compatibility varies between instruments and applications, so we recommend checking that your Yamaha instrument and chosen app support the UD-BT01 before purchasing.
| Product Type | Bluetooth wireless MIDI adaptor |
| Compatible Instrument Connection | USB TO HOST |
| Bluetooth Standard | Bluetooth 4.0, GATT compatible |
| MIDI Standard | Bluetooth Low Energy MIDI compliant |
| Transmit Frequency Range | 2402 - 2480 MHz |
| Maximum RF Output Power | 4 dBm |
| USB Connectors | USB Type-A male x 1, USB Type-A female x 1 |
| Power Supply | USB bus powered via external USB AC adaptor |
| Power Consumption | 170 mW |

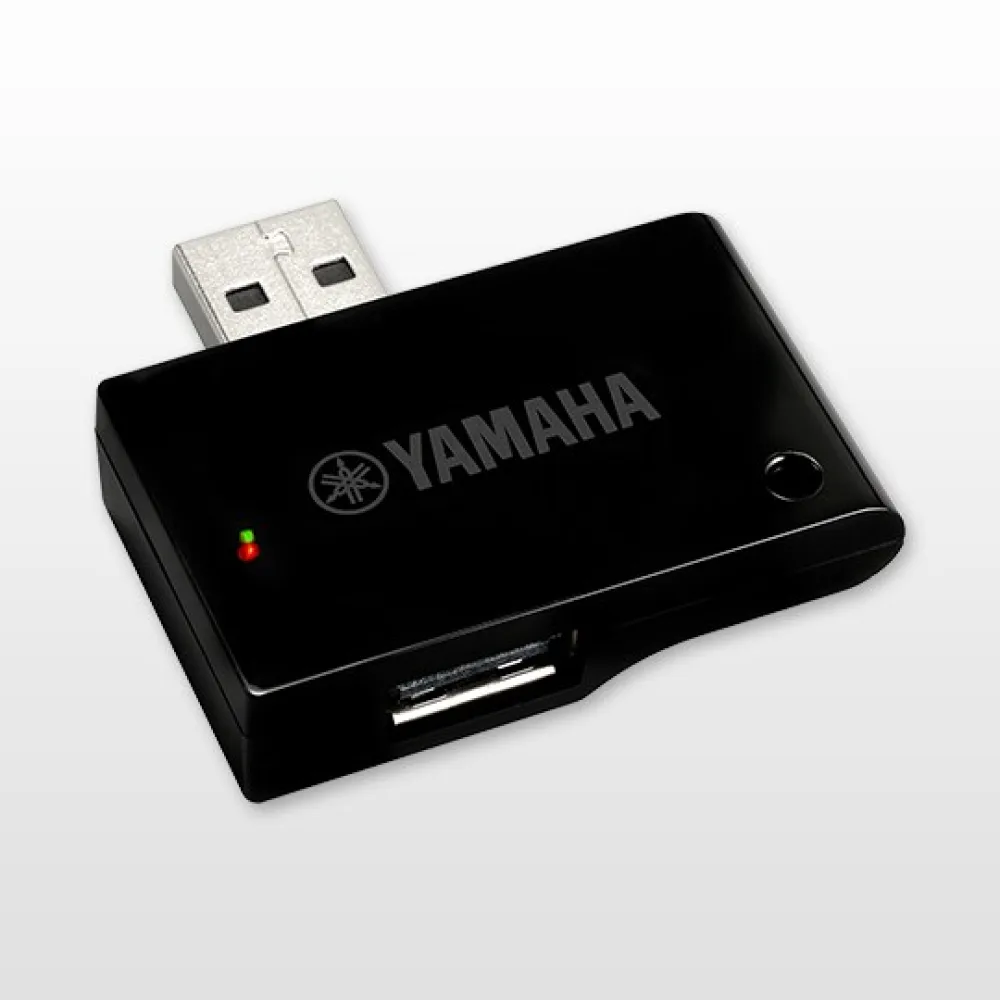

| Indicators | 2 LEDs |
| Width | 45 mm |
| Height | 12 mm |
| Depth | 40 mm including connector |
| Weight | 10 g |
| Colour | Black |
| Compatible Device Type | Compatible iPhone, iPad, iPod touch and Mac devices with Bluetooth support |
Q: What does the Yamaha UD-BT01 do?
A: The Yamaha UD-BT01 adds Bluetooth wireless MIDI connectivity to compatible Yamaha instruments, allowing MIDI data to be exchanged wirelessly with supported devices and applications.
Q: Which Yamaha instruments are compatible with the UD-BT01?
A: The Yamaha UD-BT01 is compatible with a wide range of selected Yamaha instruments. Supported ranges include many P-Series digital pianos, Arius models, DGX instruments, Piaggero keyboards, PSR arrangers, Clavinova pianos, MODX and MONTAGE synthesisers, and selected CK, CP and YC stage keyboards. Examples include the P-225, P-145, P-125, P-115, DGX-670, PSR-SX920, PSR-SX720, MODX+, MODX, CK61, CK88, CP88, CP73, YC61, YC73 and YC88. Compatibility varies by model, so we recommend checking that your specific Yamaha instrument is listed as UD-BT01 compatible before purchasing.
Q: Will the Yamaha UD-BT01 work with every instrument that has USB TO HOST?
A: No. Having a USB TO HOST connection does not automatically mean an instrument supports the UD-BT01. Yamaha specifies compatibility on a model-by-model basis, so your particular instrument should be checked before ordering.
Q: Does the Yamaha UD-BT01 work with the Yamaha P-525?
A: The Yamaha P-525 is not listed by Yamaha as requiring or supporting the UD-BT01. The P-525 already includes built-in Bluetooth Audio and Bluetooth MIDI functionality.
Q: Does the Yamaha UD-BT01 transmit audio over Bluetooth?
A: No. The UD-BT01 is designed for Bluetooth MIDI communication rather than Bluetooth audio streaming.
Q: Does the Yamaha UD-BT01 need a power supply?
A: Yes. The UD-BT01 requires an external USB AC adaptor for power when connected to a compatible Yamaha instrument.
Q: How does the Yamaha UD-BT01 connect to my keyboard?
A: The UD-BT01 connects to the USB TO HOST terminal on a compatible Yamaha instrument using a USB cable. The adaptor is then powered using an external USB AC adaptor.
Q: Can I use the Yamaha UD-BT01 with an iPad or iPhone?
A: Yes. The UD-BT01 was designed to provide wireless MIDI communication with compatible iPhone and iPad devices using supported Bluetooth MIDI applications.
Q: Can the Yamaha UD-BT01 be used with a Mac?
A: Yes. The UD-BT01 can provide Bluetooth MIDI communication with compatible Mac computers that support the required Bluetooth functionality.
Q: Does the Yamaha UD-BT01 use Bluetooth Low Energy?
A: Yes. The UD-BT01 complies with the Bluetooth Low Energy MIDI specification and uses Bluetooth 4.0 technology.
Q: Is the Yamaha UD-BT01 compatible with every Yamaha app?
A: No. Compatibility depends on the instrument, operating system and application being used. We recommend checking the requirements for your particular Yamaha instrument and app before purchasing.
